今天是pytorch学习打卡的第十天。。。

Pytorch没有官方的高阶API，一般需要用户自己实现训练循环、验证循环、和预测循环。

作者通过仿照tf.keras.Model的功能对Pytorch的nn.Module进行了封装，

实现了 fit, validate，predict, summary 方法，相当于用户自定义高阶API。

并在其基础上实现线性回归模型和DNN二分类模型。

import os
import datetime
from torchkeras import Model, summary#打印时间
def printbar():nowtime = datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S')print("\n"+"=========="*8 + "%s"%nowtime)

一、线性回归模型

此范例我们通过继承上述用户自定义 Model模型接口，实现线性回归模型。

1.准备数据

import numpy as np
import pandas as pd
from matplotlib import pyplot as plt
import torch
from torch import nn
import torch.nn.functional as F
from torch.utils.data import Dataset,DataLoader,TensorDataset#样本数量
n = 400# 生成测试用数据集
X = 10*torch.rand([n,2])-5.0  #torch.rand是均匀分布
w0 = torch.tensor([[2.0],[-3.0]])
b0 = torch.tensor([[10.0]])
Y = X@w0 + b0 + torch.normal( 0.0,2.0,size = [n,1])  # @表示矩阵乘法,增加正态扰动

# 数据可视化%matplotlib inline
%config InlineBackend.figure_format = 'svg'plt.figure(figsize = (12,5))
ax1 = plt.subplot(121)
ax1.scatter(X[:,0],Y[:,0], c = "b",label = "samples")
ax1.legend()
plt.xlabel("x1")
plt.ylabel("y",rotation = 0)ax2 = plt.subplot(122)
ax2.scatter(X[:,1],Y[:,0], c = "g",label = "samples")
ax2.legend()
plt.xlabel("x2")
plt.ylabel("y",rotation = 0)
plt.show()

#构建输入数据管道
ds = TensorDataset(X,Y)
ds_train,ds_valid = torch.utils.data.random_split(ds,[int(400*0.7),400-int(400*0.7)])
dl_train = DataLoader(ds_train,batch_size = 10,shuffle=True,num_workers=2)
dl_valid = DataLoader(ds_valid,batch_size = 10,num_workers=2)

2.定义模型

# 继承用户自定义模型
from torchkeras import Model
class LinearRegression(Model):def __init__(self):super(LinearRegression, self).__init__()self.fc = nn.Linear(2,1)def forward(self,x):return self.fc(x)model = LinearRegression()

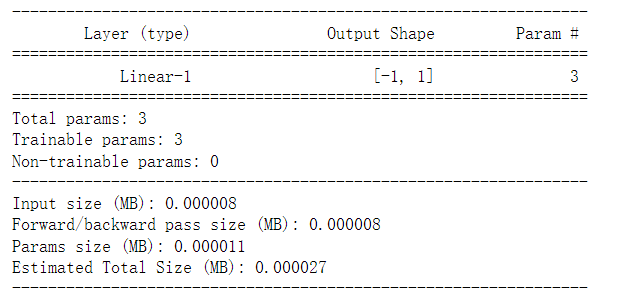

model.summary(input_shape = (2,))

3.训练模型

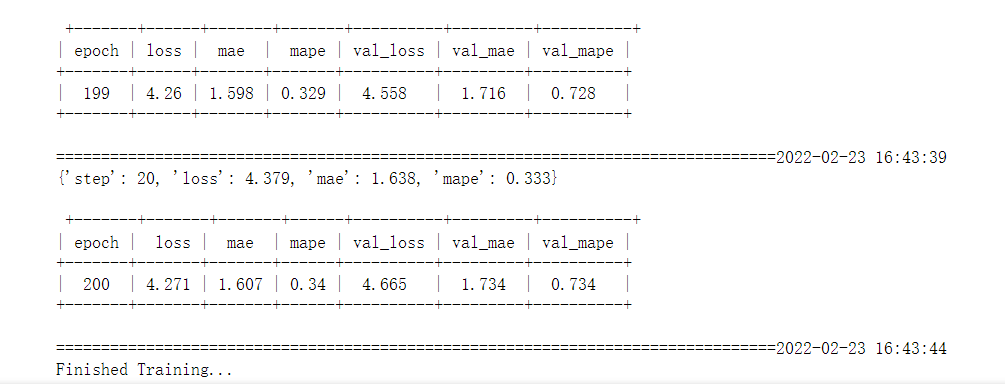

### 使用fit方法进行训练def mean_absolute_error(y_pred,y_true):return torch.mean(torch.abs(y_pred-y_true))def mean_absolute_percent_error(y_pred,y_true):absolute_percent_error = (torch.abs(y_pred-y_true)+1e-7)/(torch.abs(y_true)+1e-7)return torch.mean(absolute_percent_error)model.compile(loss_func = nn.MSELoss(),optimizer= torch.optim.Adam(model.parameters(),lr = 0.01),metrics_dict={"mae":mean_absolute_error,"mape":mean_absolute_percent_error})dfhistory = model.fit(200,dl_train = dl_train, dl_val = dl_valid,log_step_freq = 20)

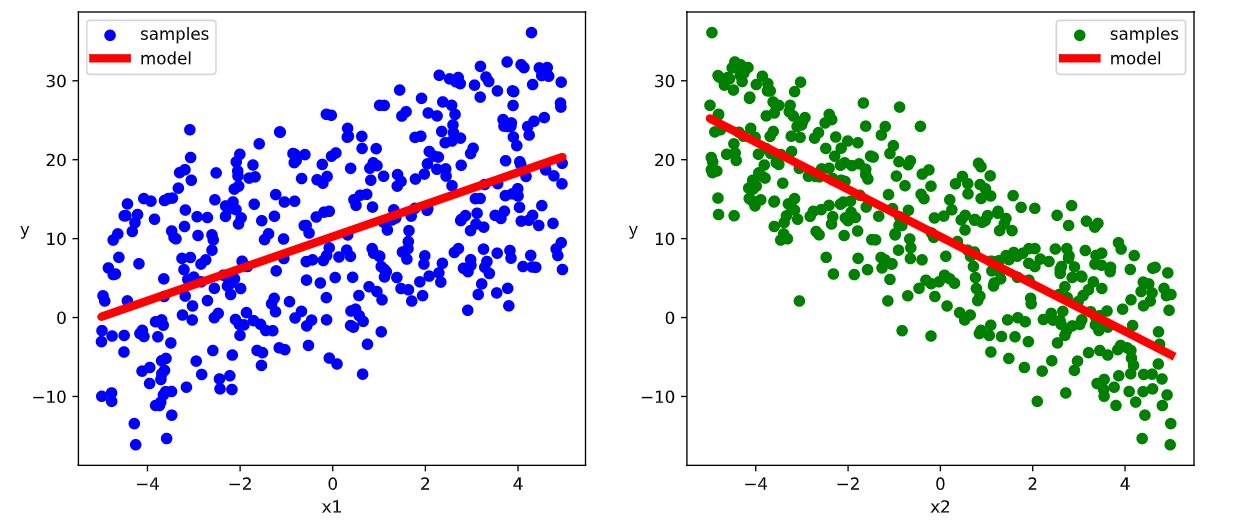

# 结果可视化%matplotlib inline
%config InlineBackend.figure_format = 'svg'w,b = model.state_dict()["fc.weight"],model.state_dict()["fc.bias"]plt.figure(figsize = (12,5))
ax1 = plt.subplot(121)
ax1.scatter(X[:,0],Y[:,0], c = "b",label = "samples")
ax1.plot(X[:,0],w[0,0]*X[:,0]+b[0],"-r",linewidth = 5.0,label = "model")
ax1.legend()
plt.xlabel("x1")
plt.ylabel("y",rotation = 0)ax2 = plt.subplot(122)
ax2.scatter(X[:,1],Y[:,0], c = "g",label = "samples")
ax2.plot(X[:,1],w[0,1]*X[:,1]+b[0],"-r",linewidth = 5.0,label = "model")
ax2.legend()
plt.xlabel("x2")
plt.ylabel("y",rotation = 0)plt.show()

4.评估模型

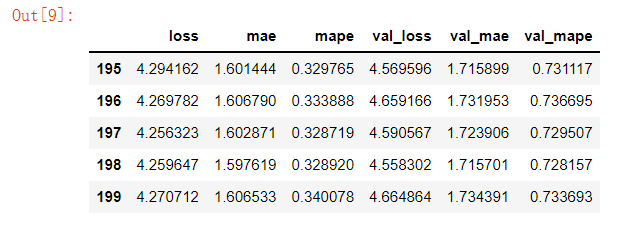

dfhistory.tail()

%matplotlib inline
%config InlineBackend.figure_format = 'svg'import matplotlib.pyplot as pltdef plot_metric(dfhistory, metric):train_metrics = dfhistory[metric]val_metrics = dfhistory['val_'+metric]epochs = range(1, len(train_metrics) + 1)plt.plot(epochs, train_metrics, 'bo--')plt.plot(epochs, val_metrics, 'ro-')plt.title('Training and validation '+ metric)plt.xlabel("Epochs")plt.ylabel(metric)plt.legend(["train_"+metric, 'val_'+metric])plt.show()

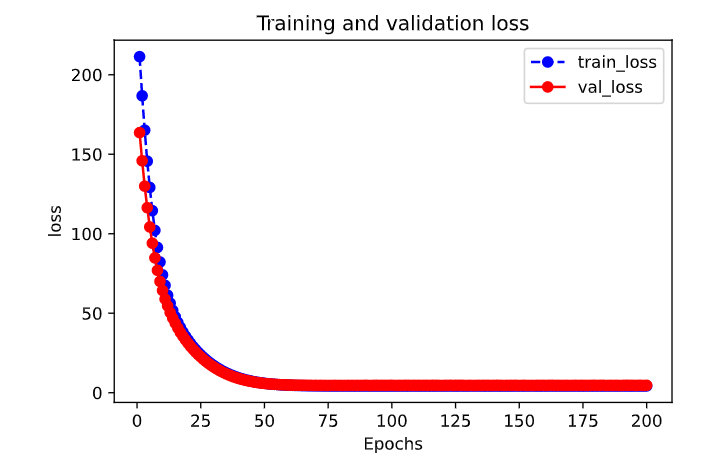

plot_metric(dfhistory,"loss")

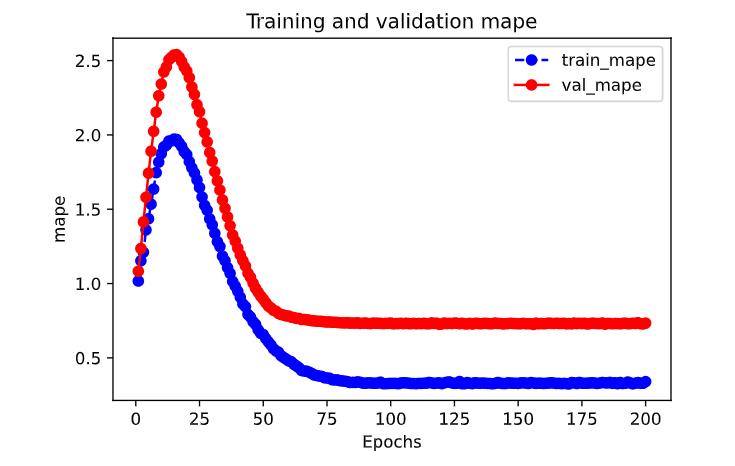

plot_metric(dfhistory,"mape")

# 评估
model.evaluate(dl_valid)

5.使用模型

# 预测
dl = DataLoader(TensorDataset(X))
model.predict(dl)[0:10]

# 预测
model.predict(dl_valid)[0:10]

二、DNN二分类模型

此范例我们通过继承上述用户自定义 Model模型接口，实现DNN二分类模型。

1.准备数据

import numpy as np
import pandas as pd
from matplotlib import pyplot as plt
import torch
from torch import nn
import torch.nn.functional as F
from torch.utils.data import Dataset,DataLoader,TensorDataset
import torchkeras
%matplotlib inline
%config InlineBackend.figure_format = 'svg'#正负样本数量
n_positive,n_negative = 2000,2000#生成正样本, 小圆环分布
r_p = 5.0 + torch.normal(0.0,1.0,size = [n_positive,1])
theta_p = 2*np.pi*torch.rand([n_positive,1])
Xp = torch.cat([r_p*torch.cos(theta_p),r_p*torch.sin(theta_p)],axis = 1)
Yp = torch.ones_like(r_p)#生成负样本, 大圆环分布
r_n = 8.0 + torch.normal(0.0,1.0,size = [n_negative,1])
theta_n = 2*np.pi*torch.rand([n_negative,1])
Xn = torch.cat([r_n*torch.cos(theta_n),r_n*torch.sin(theta_n)],axis = 1)
Yn = torch.zeros_like(r_n)#汇总样本
X = torch.cat([Xp,Xn],axis = 0)

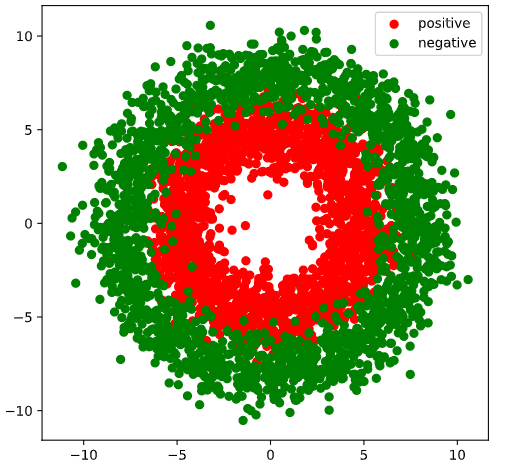

Y = torch.cat([Yp,Yn],axis = 0)#可视化
plt.figure(figsize = (6,6))
plt.scatter(Xp[:,0],Xp[:,1],c = "r")
plt.scatter(Xn[:,0],Xn[:,1],c = "g")
plt.legend(["positive","negative"]);

ds = TensorDataset(X,Y)ds_train,ds_valid = torch.utils.data.random_split(ds,[int(len(ds)*0.7),len(ds)-int(len(ds)*0.7)])
dl_train = DataLoader(ds_train,batch_size = 100,shuffle=True,num_workers=2)
dl_valid = DataLoader(ds_valid,batch_size = 100,num_workers=2)

2.定义模型

class Net(nn.Module):def __init__(self):super().__init__()self.fc1 = nn.Linear(2,4)self.fc2 = nn.Linear(4,8) self.fc3 = nn.Linear(8,1)def forward(self,x):x = F.relu(self.fc1(x))x = F.relu(self.fc2(x))y = nn.Sigmoid()(self.fc3(x))return ymodel = torchkeras.Model(Net())

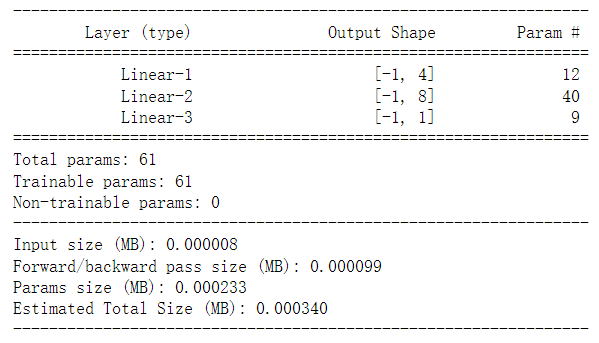

model.summary(input_shape =(2,))

3.训练模型

# 准确率

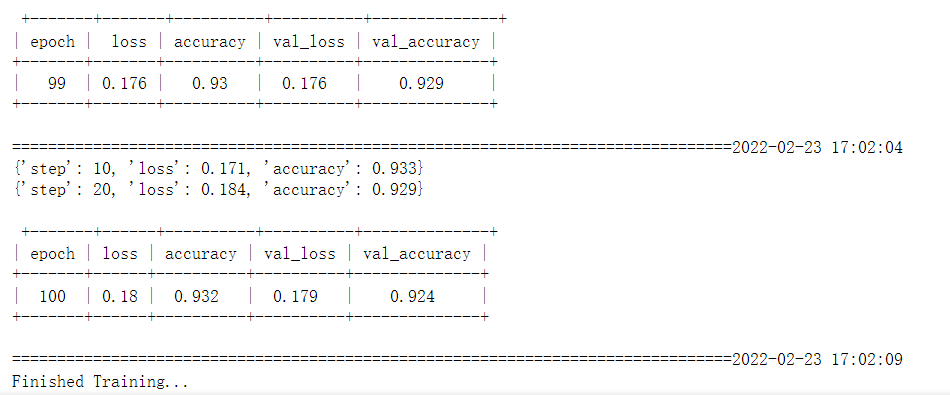

def accuracy(y_pred,y_true):y_pred = torch.where(y_pred>0.5,torch.ones_like(y_pred,dtype = torch.float32),torch.zeros_like(y_pred,dtype = torch.float32))acc = torch.mean(1-torch.abs(y_true-y_pred))return accmodel.compile(loss_func = nn.BCELoss(),optimizer= torch.optim.Adam(model.parameters(),lr = 0.01),metrics_dict={"accuracy":accuracy})dfhistory = model.fit(100,dl_train = dl_train,dl_val = dl_valid,log_step_freq = 10)

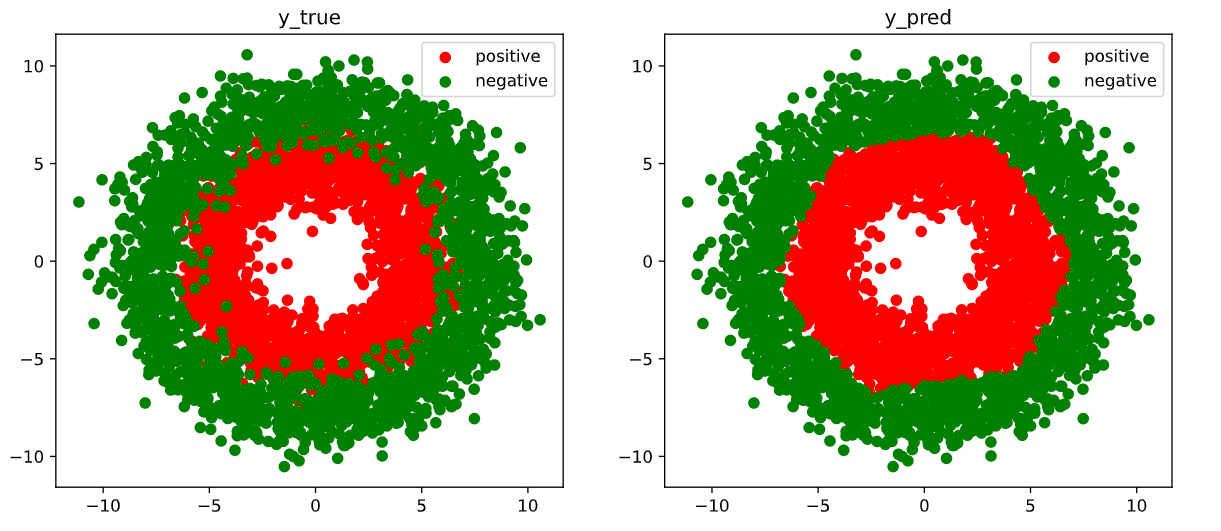

# 结果可视化
fig, (ax1,ax2) = plt.subplots(nrows=1,ncols=2,figsize = (12,5))
ax1.scatter(Xp[:,0],Xp[:,1], c="r")
ax1.scatter(Xn[:,0],Xn[:,1],c = "g")
ax1.legend(["positive","negative"]);
ax1.set_title("y_true");Xp_pred = X[torch.squeeze(model.forward(X)>=0.5)]
Xn_pred = X[torch.squeeze(model.forward(X)<0.5)]ax2.scatter(Xp_pred[:,0],Xp_pred[:,1],c = "r")
ax2.scatter(Xn_pred[:,0],Xn_pred[:,1],c = "g")
ax2.legend(["positive","negative"]);
ax2.set_title("y_pred");

4.评估模型

%matplotlib inline
%config InlineBackend.figure_format = 'svg'import matplotlib.pyplot as pltdef plot_metric(dfhistory, metric):train_metrics = dfhistory[metric]val_metrics = dfhistory['val_'+metric]epochs = range(1, len(train_metrics) + 1)plt.plot(epochs, train_metrics, 'bo--')plt.plot(epochs, val_metrics, 'ro-')plt.title('Training and validation '+ metric)plt.xlabel("Epochs")plt.ylabel(metric)plt.legend(["train_"+metric, 'val_'+metric])plt.show()

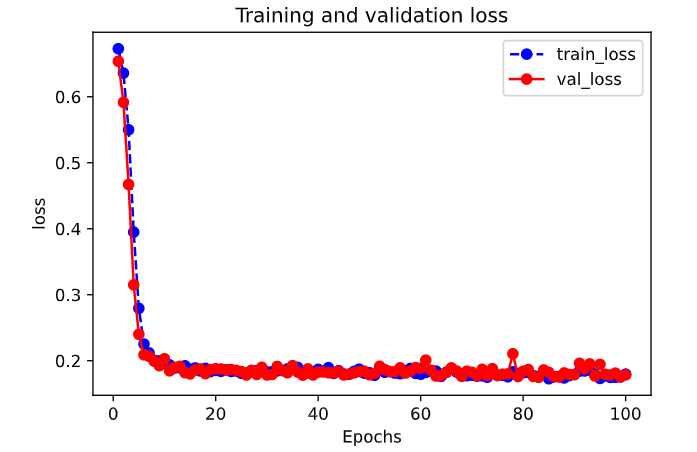

plot_metric(dfhistory,"loss")

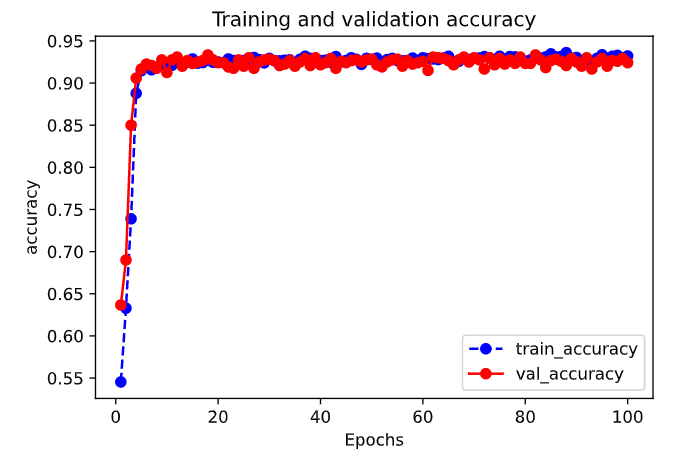

plot_metric(dfhistory,"accuracy")

model.evaluate(dl_valid)

5.使用模型

model.predict(dl_valid)[0:10]
