网站开发毕业论文提纲,沈阳线上教学,哪里有网站建设商家,浙江因家软装设计有限公司原文地址分类目录——强化学习分类目录——tkinter 全部代码先看一下环境效果强化学习用到的环境通常需要以下几个功能函数 _init_() def __init__(self):super(Maze, self).__init__()self.observatin_space [(x, y) for x in range(1, 5) for y in range(1, …

原文地址

分类目录——强化学习

分类目录——tkinter

全部代码

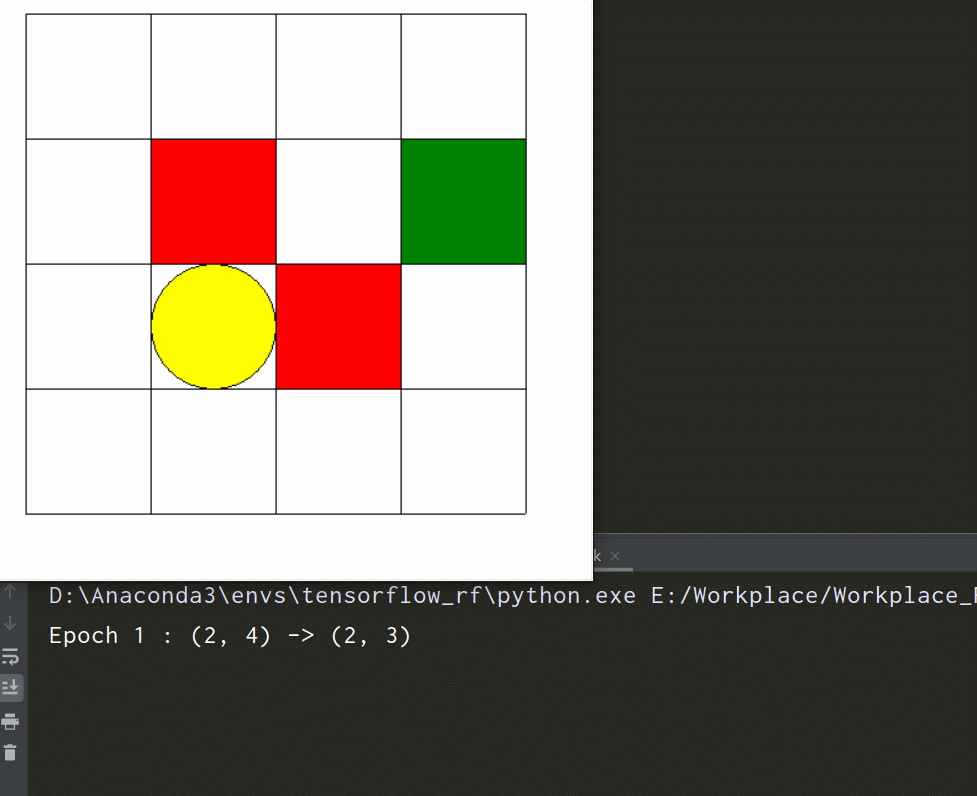

先看一下环境效果

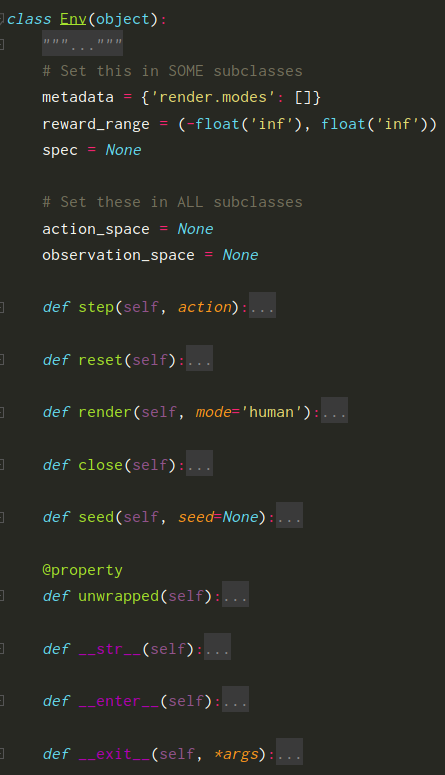

强化学习用到的环境通常需要以下几个功能函数

_init_()

    def __init__(self):super(Maze, self).__init__()self.observatin_space = [(x, y) for x in range(1, 5) for y in range(1, 5)]self.action_space = range(4)self.n_actions = len(self.action_space)self.n_features = np.array(self.observatin_space).shape[-1]self.target = {(4, 2): 10}  # 安全/目标状态self.danger = {(2, 2): -20, (3, 3): -20}  # 危险状态self.state = None# 初始化窗口、画布self.window = tk.Tk()self.canvas = tk.Canvas(self.window, bg='white', height=500, width=500)

reset()

用来在每轮训练前重置初始化状态

    def reset(self, startstate=None):   # 重置初始状态self.canvas.delete('all')       # 操作之前清空画布，否则每步的状态将都会堆在画面上if startstate == None:          # 如果不指定起始状态，随机生成一个状态self.state = self.observatin_space[np.random.choice(range(len(self.observatin_space)))]else:   # 如果指定了初始状态，就初始化为指定状态self.state = startstateself.counts = 0return self.state

step()

用来处理每一步的逻辑，获得下一个状态，回报以及判断是否结束

    def step(self, action):self.canvas.delete('all')# self.canvas.delete(self.statepos)x, y = self.stateif action == 0:  # 不动x = xy = yelif action == 1:  # 上x = xy = y + 1elif action == 2:  # 下x = xy = y - 1elif action == 3:  # 左x = x - 1y = yelif action == 4:  # 右x = x + 1y = y# 判断下一个状态是否属于状态空间，如果在状态空间中更新当前状态，如果不在状态空间保持当前状态next_state = (x, y)self.state = next_state if next_state in self.observatin_space else self.stateself.counts += 1s = tuple(self.state)   # 为了能用in操作if s in self.danger.keys():reward = self.danger[s]done = Trueelif s in self.target.keys():reward = self.target[s]done = Trueelse:reward = -0.5   # 每多走一个，加个小的负反馈done = Falsereturn self.state, reward, done

render()

完成可视化画面搭建

    def render(self):# 注意tkinter的平面为向下x轴正向，向右y轴正向# 格线for i in range(5):# 两个顶点的四个坐标self.canvas.create_line(50, 50 + 100 * i, 450, 50 + 100 * i)self.canvas.create_line(50 + 100 * i, 50, 50 + 100 * i, 450)# 绘制出口（安全状态）for state in self.target:# 我自己把画格的操作封装了一个方法self.drawrectangle(state, fill='green')# 绘制危险区域for state in self.danger:self.drawrectangle(state, fill='red')# 绘制当前state的位置(圆)self.statepos = self.drawoval(self.state, fill='yellow')self.canvas.pack()self.window.update()# 为了方便的复用，将画格点和画圆另外进行了封装def drawrectangle(self, point, **attrs):'''根据格点画一个方格:param point: 格点坐标（4，3）:param attrs: 其他参数，such as  fill='red':return:'''size = 100self.canvas.create_rectangle(50 + (point[0] - 1) * size, 50 + (point[1] - 1) * size,50 + point[0] * size, 50 + point[1] * size,**attrs)# 向右为x正方向，向下为y轴正方向# 左上角坐标和右下角坐标# 画椭圆def drawoval(self, point, **attrs):'''画（椭）圆:param point: 格点坐标（4，3）:param attrs: 其他参数，such as  fill='red':return:'''size = 100self.canvas.create_oval(50 + (point[0] - 1) * size, 50 + (point[1] - 1) * size,50 + point[0] * size, 50 + point[1] * size,**attrs)

close()

    def close(self):if self.window:self.window.destroy()

测试

if __name__ == '__main__':env = Maze()for epoch in range(5):env.reset()print('Epoch', epoch + 1, ': ', end='')print(env.state, end='')env.render()  # 刷新画面time.sleep(0.5)for i in range(5):env.step(np.random.choice(env.action_space))  # 随机选择一个动作执行print(' ->', env.state, end='')env.render()  # 刷新画面time.sleep(0.5)print()env.close()
