(一)介绍
官方文档。CountDownTimer是一个倒计时的类,还可以指定时间间隔定期通知,举个栗子,比如说你倒计时是100秒的,可以指定每20秒通知一次,这样开始的时候会回调一次,20秒时会回调一次,40秒时会回调一次…,200秒时的回调和时间间隔的回调不同方法的。
(二)使用
CountDownTimer只有一个构造,
/*** @param millisInFuture The number of millis in the future from the call* to {@link #start()} until the countdown is done and {@link #onFinish()}* is called.* @param countDownInterval The interval along the way to receive* {@link #onTick(long)} callbacks.*/public CountDownTimer(long millisInFuture, long countDownInterval) {mMillisInFuture = millisInFuture;mCountdownInterval = countDownInterval;}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
从方法的注释中可以看出,第一个参数是总的倒计时时间,第二个参数是定期的回调时间。
使用的时候:
new CountDownTimer(10000, 2000) {@Overridepublic void onTick(long millisUntilFinished) {Log.v("CountDownTimerTest", "onTick millisUntilFinished = " + millisUntilFinished);}@Overridepublic void onFinish() {Log.v("CountDownTimerTest", "onFinish");}
}.start();
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
onTick()方法是定期间隔回调的方法,onFinish()就是结束时回调的方法了。” title=”“>

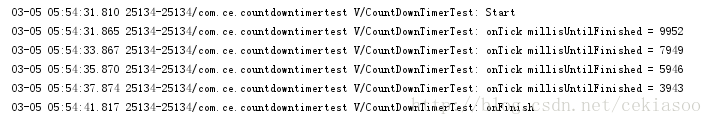

可以看出在9970毫秒的时候回调了一次onTick()方法,因为消息传递会消耗一点时间,使用传过来时是9976毫秒,后面的也是,这里执行了onTick()方法4次,那剩下2秒的时候不应该还要执行一次么?怎么3964后就不执行onTick()方法了?原因是3964毫秒再经过2秒就剩下1900多毫秒,比2秒小,使用不执行onTick()方法。
CountDownTimer的核心代码
final long millisLeft = mStopTimeInFuture - SystemClock.elapsedRealtime();
if (millisLeft <= 0) {onFinish();
} else if (millisLeft < mCountdownInterval) {// no tick, just delay until donesendMessageDelayed(obtainMessage(MSG), millisLeft);
} else {long lastTickStart = SystemClock.elapsedRealtime();onTick(millisLeft);long delay = lastTickStart + mCountdownInterval - SystemClock.elapsedRealtime();while (delay < 0) delay += mCountdownInterval;sendMessageDelayed(obtainMessage(MSG), delay);
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
如果倒计时后不让它执行了也可以取消倒计时,调用CountDownTimer的cancel()方法就可以取消倒计时了。
(三)封装
有时候我们并不关心onTick(),只需要关心onFinish()方法的执行,我们可以封装个工具类,把这两个功能分开,想单独用时就单独用,想合起来用时就合起来用。
package com.ce.countdowntimertest.utils;
import android.os.CountDownTimer;
/*** 倒计时工具类*/
public class CountDownTimerUtils {/*** 倒计时结束的回调接口*/public interface FinishDelegate {void onFinish();}/*** 定期回调的接口*/public interface TickDelegate {void onTick(long pMillisUntilFinished);}private final static long ONE_SECOND = 1000;/*** 总倒计时时间*/private long mMillisInFuture = 0;/*** 定期回调的时间 必须大于0 否则会出现ANR*/private long mCountDownInterval;/*** 倒计时结束的回调*/private FinishDelegate mFinishDelegate;/*** 定期回调*/private TickDelegate mTickDelegate;private MyCountDownTimer mCountDownTimer;/*** 获取 CountDownTimerUtils* @return CountDownTimerUtils*/public static CountDownTimerUtils getCountDownTimer() {return new CountDownTimerUtils();}/*** 设置定期回调的时间 调用{@link #setTickDelegate(TickDelegate)}* @param pCountDownInterval 定期回调的时间 必须大于0* @return CountDownTimerUtils*/public CountDownTimerUtils setCountDownInterval(long pCountDownInterval) {this.mCountDownInterval=pCountDownInterval;return this;}/*** 设置倒计时结束的回调* @param pFinishDelegate 倒计时结束的回调接口* @return CountDownTimerUtils*/public CountDownTimerUtils setFinishDelegate(FinishDelegate pFinishDelegate) {this.mFinishDelegate=pFinishDelegate;return this;}/*** 设置总倒计时时间* @param pMillisInFuture 总倒计时时间* @return CountDownTimerUtils*/public CountDownTimerUtils setMillisInFuture(long pMillisInFuture) {this.mMillisInFuture=pMillisInFuture;return this;}/*** 设置定期回调* @param pTickDelegate 定期回调接口* @return CountDownTimerUtils*/public CountDownTimerUtils setTickDelegate(TickDelegate pTickDelegate) {this.mTickDelegate=pTickDelegate;return this;}public void create() {if (mCountDownTimer != null) {mCountDownTimer.cancel();mCountDownTimer = null;}if (mCountDownInterval <= 0) {mCountDownInterval = mMillisInFuture + ONE_SECOND;}mCountDownTimer = new MyCountDownTimer(mMillisInFuture, mCountDownInterval);mCountDownTimer.setTickDelegate(mTickDelegate);mCountDownTimer.setFinishDelegate(mFinishDelegate);}/*** 开始倒计时*/public void start() {if (mCountDownTimer == null) {create();}mCountDownTimer.start();}/*** 取消倒计时*/public void cancel() {if (mCountDownTimer != null) {mCountDownTimer.cancel();}}private static class MyCountDownTimer extends CountDownTimer {private FinishDelegate mFinishDelegate;private TickDelegate mTickDelegate;/*** @param millisInFuture The number of millis in the future from the call* to {@link #start()} until the countdown is done and {@link #onFinish()}* is called.* @param countDownInterval The interval along the way to receive* {@link #onTick(long)} callbacks.*/public MyCountDownTimer(long millisInFuture, long countDownInterval) {super(millisInFuture, countDownInterval);}@Overridepublic void onTick(long millisUntilFinished) {if (mTickDelegate != null) {mTickDelegate.onTick(millisUntilFinished);}}@Overridepublic void onFinish() {if (mFinishDelegate != null) {mFinishDelegate.onFinish();}}void setFinishDelegate(FinishDelegate pFinishDelegate) {this.mFinishDelegate=pFinishDelegate;}void setTickDelegate(TickDelegate pTickDelegate) {this.mTickDelegate=pTickDelegate;}}
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 139
- 140
- 141
使用也简单,用getCountDownTimer()方法获取实例;setMillisInFuture()方法是设置总倒计时时间;setFinishDelegate()方法是设置倒计时完成的回调;setCountDownInterval()方法是设置定期回调的时间间隔,但值要大于0,不然会出现ANR的,因为不停的回调会导致Looper消息处理不过来;setTickDelegate()方法是设置定期回调的。
只需要最终倒计时的使用:
Log.v("CountDownTimerTest", "Start");CountDownTimerUtils.getCountDownTimer().setMillisInFuture(5000).setFinishDelegate(new CountDownTimerUtils.FinishDelegate() {@Overridepublic void onFinish() {Log.v("CountDownTimerTest", "onFinish");}}).start();
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9

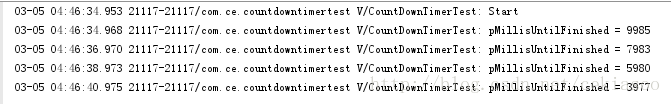

也可以只要定期的间隔回调,不过要设置设置下总倒计时时间:
Log.v("CountDownTimerTest", "Start");CountDownTimerUtils.getCountDownTimer().setMillisInFuture(10000).setCountDownInterval(2000).setTickDelegate(new CountDownTimerUtils.TickDelegate() {@Overridepublic void onTick(long pMillisUntilFinished) {Log.v("CountDownTimerTest", "pMillisUntilFinished = " + pMillisUntilFinished);}}).start();
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10

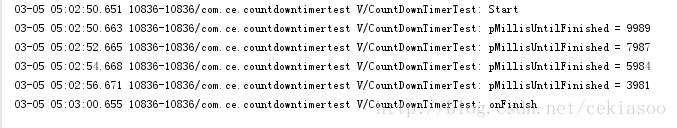

当然也可以两个都有:
Log.v("CountDownTimerTest", "Start");CountDownTimerUtils.getCountDownTimer().setMillisInFuture(10000).setCountDownInterval(2000).setTickDelegate(new CountDownTimerUtils.TickDelegate() {@Overridepublic void onTick(long pMillisUntilFinished) {Log.v("CountDownTimerTest", "pMillisUntilFinished = " + pMillisUntilFinished);}}).setFinishDelegate(new CountDownTimerUtils.FinishDelegate() {@Overridepublic void onFinish() {Log.v("CountDownTimerTest", "onFinish");}}).start();
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
(四)改进

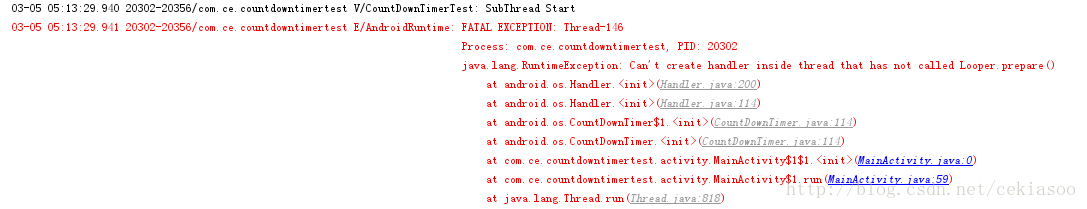

虽然CountDownTimer很好用,但有个缺点,就是只能在主线程中运行,如果在子线程中运行就会报错,
new Thread(new Runnable() {@Overridepublic void run() {Log.v("CountDownTimerTest", "SubThread Start");new android.os.CountDownTimer(10000, 2000) {@Overridepublic void onTick(long millisUntilFinished) {Log.v("CountDownTimerTest", "onTick millisUntilFinished = " + millisUntilFinished);}@Overridepublic void onFinish() {Log.v("CountDownTimerTest", "onFinish");}}.start();}}).start();
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
原因是在主线程中Handler的Looper Android系统已经在framework层帮我们prepare(prepareMainLooper())过了,但在我们这个子线程没有Looper,那怎么办?我们可以借助HandlerThread完成,新建个自己的CountDownTimer类,把Android的CountDownTimer的源代码复制到我们新建的CountDownTimer类中,修改下包名,就不要用Android的CountDownTimer这个类的了,改造如下:
package com.ce.countdowntimertest.common;/** Copyright (C) 2008 The Android Open Source Project** Licensed under the Apache License, Version 2.0 (the "License");* you may not use this file except in compliance with the License.* You may obtain a copy of the License at** http://www.apache.org/licenses/LICENSE-2.0** Unless required by applicable law or agreed to in writing, software* distributed under the License is distributed on an "AS IS" BASIS,* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.* See the License for the specific language governing permissions and* limitations under the License.*/import android.os.Handler;
import android.os.HandlerThread;
import android.os.Looper;
import android.os.Message;
import android.os.SystemClock;/**** Created by CE** Schedule a countdown until a time in the future, with* regular notifications on intervals along the way.** Example of showing a 30 second countdown in a text field:** <pre class="prettyprint">* new CountDownTimer(30000, 1000) {** public void onTick(long millisUntilFinished) {* mTextField.setText("seconds remaining: " + millisUntilFinished / 1000);* }** public void onFinish() {* mTextField.setText("done!");* }* }.start();* </pre>** The calls to {@link #onTick(long)} are synchronized to this object so that* one call to {@link #onTick(long)} won't ever occur before the previous* callback is complete. This is only relevant when the implementation of* {@link #onTick(long)} takes an amount of time to execute that is significant* compared to the countdown interval.*/
public abstract class CountDownTimer {/*** Millis since epoch when alarm should stop.*/private final long mMillisInFuture;/*** The interval in millis that the user receives callbacks*/private final long mCountdownInterval;private long mStopTimeInFuture;/*** boolean representing if the timer was cancelled*/private boolean mCancelled = false;/*** @param millisInFuture The number of millis in the future from the call* to {@link #start()} until the countdown is done and {@link #onFinish()}* is called.* @param countDownInterval The interval along the way to receive* {@link #onTick(long)} callbacks.*/public CountDownTimer(long millisInFuture, long countDownInterval) {mMillisInFuture = millisInFuture;mCountdownInterval = countDownInterval;if (!isMainThread()) {mHandlerThread = new HandlerThread("CountDownTimerThread");mHandlerThread.start();mHandler = new Handler(mHandlerThread.getLooper(), mCallback);} else {mHandler = new Handler(mCallback);}}/*** Cancel the countdown.*/public synchronized final void cancel() {mCancelled = true;mHandler.removeMessages(MSG);}/*** Start the countdown.*/public synchronized final CountDownTimer start() {mCancelled = false;if (mMillisInFuture <= 0) {onFinish();return this;}mStopTimeInFuture = SystemClock.elapsedRealtime() + mMillisInFuture;mHandler.sendMessage(mHandler.obtainMessage(MSG));return this;}private boolean isMainThread() {return Looper.getMainLooper().getThread().equals(Thread.currentThread());}/*** Callback fired on regular interval.* @param millisUntilFinished The amount of time until finished.*/public abstract void onTick(long millisUntilFinished);/*** Callback fired when the time is up.*/public abstract void onFinish();private static final int MSG = 1;// handles counting down/*private android.os.Handler mHandler = new android.os.Handler() {@Overridepublic void handleMessage(Message msg) {synchronized (CountDownTimer.this) {if (mCancelled) {return;}final long millisLeft = mStopTimeInFuture - SystemClock.elapsedRealtime();if (millisLeft <= 0) {onFinish();} else if (millisLeft < mCountdownInterval) {// no tick, just delay until donesendMessageDelayed(obtainMessage(MSG), millisLeft);} else {long lastTickStart = SystemClock.elapsedRealtime();onTick(millisLeft);// take into account user's onTick taking time to executelong delay = lastTickStart + mCountdownInterval - SystemClock.elapsedRealtime();// special case: user's onTick took more than interval to// complete, skip to next intervalwhile (delay < 0) delay += mCountdownInterval;sendMessageDelayed(obtainMessage(MSG), delay);}}}};*/private HandlerThread mHandlerThread;private Handler mHandler;private Handler.Callback mCallback = new Handler.Callback() {@Overridepublic boolean handleMessage(Message msg) {synchronized (CountDownTimer.this) {if (mCancelled) {return true;}final long millisLeft = mStopTimeInFuture - SystemClock.elapsedRealtime();if (millisLeft <= 0) {onFinish();if (mHandlerThread != null) mHandlerThread.quit();} else if (millisLeft < mCountdownInterval) {// no tick, just delay until donemHandler.sendMessageDelayed(mHandler.obtainMessage(MSG), millisLeft);} else {long lastTickStart = SystemClock.elapsedRealtime();onTick(millisLeft);// take into account user's onTick taking time to executelong delay = lastTickStart + mCountdownInterval - SystemClock.elapsedRealtime();// special case: user's onTick took more than interval to// complete, skip to next intervalwhile (delay < 0) delay += mCountdownInterval;mHandler.sendMessageDelayed(mHandler.obtainMessage(MSG), delay);}}return false;}};
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 139
- 140
- 141
- 142
- 143
- 144
- 145
- 146
- 147
- 148
- 149
- 150
- 151
- 152
- 153
- 154
- 155
- 156
- 157
- 158
- 159
- 160
- 161
- 162
- 163
- 164
- 165
- 166
- 167
- 168
- 169
- 170
- 171
- 172
- 173
- 174
- 175
- 176
- 177
- 178
- 179
- 180
- 181
- 182
- 183
- 184
- 185
- 186
- 187
- 188
- 189
- 190
- 191
- 192
- 193
- 194
- 195
- 196
- 197
- 198
- 199
如果是主线程就不用管了,如果是子线程我们就把HandlerThread的getLooper()拿出来给Handler。这里我用的是Handler.Callback来进行对消息处理的。现在我们把刚才在子线程中运行的CountDownTimer类改成我们自己定义的CountDownTimer类在运行一下:
new Thread(new Runnable() {@Overridepublic void run() {Log.v("CountDownTimerTest", "SubThread Start");new com.ce.countdowntimertest.common.CountDownTimer(10000, 2000) {@Overridepublic void onTick(long millisUntilFinished) {Log.v("CountDownTimerTest", "onTick millisUntilFinished = " + millisUntilFinished);}@Overridepublic void onFinish() {Log.v("CountDownTimerTest", "onFinish");}}.start();}
}).start();
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17

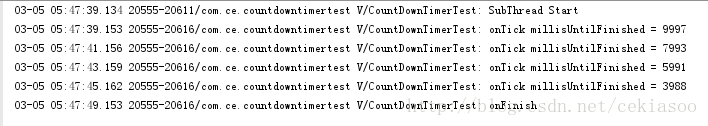

可以运行了,当然在主线程也是正常的:
Log.v("CountDownTimerTest", "Start");new com.ce.countdowntimertest.common.CountDownTimer(10000, 2000) {@Overridepublic void onTick(long millisUntilFinished) {Log.v("CountDownTimerTest", "onTick millisUntilFinished = " + millisUntilFinished);}@Overridepublic void onFinish() {Log.v("CountDownTimerTest", "onFinish");}}.start();
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
如果在CountDownTimerUtils类里想用这个改进的CountDownTimer,改下CountDownTimer的包名就可以运行。
源码地址
