引言

• 在OpenCV中有个用于模板匹配的基本函数matchTemplate()，该函数使用某模板在搜索图像中进行搜索时，只能搜索到和模板完全一样的地方，一旦在搜索图像中要搜索的区域相较于模板是旋转了、放大缩小了或者部分遮掩了就无法匹配到结果了。
• 而在halcon中有个基于形状匹配的算子，这个算子非常好用，随便截取一个ROI区域做模板就可以在搜索图像中匹配到相似的区域，并且能输出搜索图像的位置，匹配尺度，匹配角度。也就是说自己截取的一个ROI区域，无论此区域在搜索图像中被放大、缩小还是旋转了、部分遮掩了都可以找到。而OpenCV本身的函数是不能实现此操作的。
• 本文简主要介绍一个类似于halcon算子的使用OpenCV实现的模板匹配算法的使用
  （该算法来源于CSDN，因将其进行本地环境配置的时候无法运行，有些除算法之外的问题，故在此处进行一些简单的地方的修改，最终成功在本地运行，特以此进行记录）
  该匹配算法的来源为:
  一步一步实现多尺度多角度的形状匹配算法(C++版本).

基于形状的匹配算法

算法来源：一步一步实现多尺度多角度的形状匹配算法(C++版本).

具体代码

KcgMatch.h

#pragma once
/*M///
//
// Author	: KayChan
// Explain	: Shape matching
//
//M*/#ifndef _KCG_MATCH_H_
#define _KCG_MATCH_H_#include <opencv2/opencv.hpp>
#include <omp.h>#ifndef ATTR_ALIGN
#  if defined(__GNUC__)
#    define ATTR_ALIGN(n)	__attribute__((aligned(n)))
#  else
#    define ATTR_ALIGN(n)	__declspec(align(n))
#  endif
#endif // #ifndef ATTR_ALIGNusing namespace cv;
using namespace std;namespace kcg {struct MatchRange{float begin;float end;float step;MatchRange() : begin(0.f), end(0.f), step(0.f) {}MatchRange(float b, float e, float s);};inline MatchRange::MatchRange(float b, float e, float s) : begin(b), end(e), step(s) {}typedef struct MatchRange AngleRange;typedef struct MatchRange ScaleRange;typedef struct ShapeInfo_S{float angle;float scale;}ShapeInfo;typedef struct Feature_S{int x;int y;int lbl;}Feature;typedef struct Candidate_S{/// Sort candidates with high score to the frontbool operator<(const struct Candidate_S &rhs) const{return score > rhs.score;}float score;Feature feature;}Candidate;typedef struct Template_S{int id = 0;int pyramid_level = 0;int is_valid = 0;int x = 0;int y = 0;int w = 0;int h = 0;ShapeInfo shape_info;vector<Feature> features;}Template;typedef struct Match_S{/// Sort matches with high similarity to the frontbool operator<(const struct Match_S &rhs) const{// Secondarily sort on template_id for the sake of duplicate removalif (similarity != rhs.similarity)return similarity > rhs.similarity;elsereturn template_id < rhs.template_id;}bool operator==(const struct Match_S &rhs) const{return x == rhs.x && y == rhs.y && similarity == rhs.similarity;}int x;int y;float similarity;int template_id;}Match;typedef enum PyramidLevel_E{PyramidLevel_0 = 0,PyramidLevel_1 = 1,PyramidLevel_2 = 2,PyramidLevel_3 = 3,PyramidLevel_4 = 4,PyramidLevel_5 = 5,PyramidLevel_6 = 6,PyramidLevel_7 = 7,PyramidLevel_TabooUse = 16,}PyramidLevel;typedef enum MatchingStrategy_E{Strategy_Accurate = 0,Strategy_Middling = 1,Strategy_Rough = 2,}MatchingStrategy;class KcgMatch{public:KcgMatch(string model_root, string class_name);~KcgMatch();/*@model: 输入图像@angle_range: 角度范围@scale_range: 尺度范围@num_features: 特征数@weak_thresh：弱阈值@strong_thresh: 强阈值@mask: 掩码*/void MakingTemplates(Mat model, AngleRange angle_range, ScaleRange scale_range,int num_features, float weak_thresh = 30.0f, float strong_thresh = 60.0f,Mat mask = Mat());/*加载模型*/void LoadModel();/*@source: 输入图像@score_thresh: 匹配分数阈值@overlap: 重叠阈值@mag_thresh: 最小梯度阈值@greediness: 贪婪度，越小匹配越快，但是可能无法匹配到目标@pyrd_level: 金字塔层数，越大匹配越快，但是可能无法匹配到目标@T: T参数@top_k: 最多匹配多少个@strategy: 精确匹配(0), 普通匹配(1), 粗略匹配(2)@mask: 匹配掩码*/vector<Match> Matching(Mat source, float score_thresh = 0.9f, float overlap = 0.4f,float mag_thresh = 30.f, float greediness = 0.8f, PyramidLevel pyrd_level = PyramidLevel_3,int T = 2, int top_k = 0, MatchingStrategy strategy = Strategy_Accurate, const Mat mask = Mat());void DrawMatches(Mat &image, vector<Match> matches, Scalar color);protected:void PaddingModelAndMask(Mat &model, Mat &mask, float max_scale);vector<ShapeInfo> ProduceShapeInfos(AngleRange angle_range, ScaleRange scale_range);Mat Transform(Mat src, float angle, float scale);Mat MdlOf(Mat model, ShapeInfo info);Mat MskOf(Mat mask, ShapeInfo info);void DrawTemplate(Mat &image, Template templ, Scalar color);void QuantifyEdge(Mat image, Mat &angle, Mat &quantized_angle, Mat &mag, float mag_thresh, bool calc_180 = true);void Quantify8(Mat angle, Mat &quantized_angle, Mat mag, float mag_thresh);void Quantify180(Mat angle, Mat &quantized_angle, Mat mag, float mag_thresh);Template ExtractTemplate(Mat angle, Mat quantized_angle, Mat mag, ShapeInfo shape_info,PyramidLevel pl, float weak_thresh, float strong_thresh, int num_features, Mat mask);Template SelectScatteredFeatures(vector<Candidate> candidates, int num_features, float distance);Rect CropTemplate(Template &templ);void LoadRegion8Idxes();void ClearModel();void SaveModel();void InitMatchParameter(float score_thresh, float overlap, float mag_thresh, float greediness, int T, int top_k, MatchingStrategy strategy);void GetAllPyramidLevelValidSource(Mat &source, PyramidLevel pyrd_level);vector<Match> GetTopKMatches(vector<Match> matches);vector<Match> DoNmsMatches(vector<Match> matches, PyramidLevel pl, float overlap);vector<Match> MatchingPyrd180(Mat src, PyramidLevel pl, vector<int> region_idxes = vector<int>());vector<Match> MatchingPyrd8(Mat src, PyramidLevel pl, vector<int> region_idxes = vector<int>());void Spread(const Mat quantized_angle, Mat &spread_angle, int T);void ComputeResponseMaps(const Mat spread_angle, vector<Mat> &response_maps);bool CalcPyUpRoiAndStartPoint(PyramidLevel cur_pl, PyramidLevel obj_pl, Match match,Mat &r, Point &p, bool is_padding = false);void CalcRegionIndexes(vector<int> &region_idxes, Match match, MatchingStrategy strategy);vector<Match> ReconfirmMatches(vector<Match> matches, PyramidLevel pl);vector<Match> MatchingFinal(vector<Match> matches, PyramidLevel pl);private:typedef vector<Template> TemplateMatchRange;TemplateMatchRange templ_all_[PyramidLevel_TabooUse];vector<Mat> sources_;ATTR_ALIGN(32) float score_table_[180][180];ATTR_ALIGN(8) unsigned char score_table_8map_[8][256];string model_root_;string class_name_;AngleRange angle_range_;ScaleRange scale_range_;vector<int> region8_idxes_;float score_thresh_;float overlap_;float mag_thresh_;float greediness_;int T_;int top_k_;MatchingStrategy strategy_;};
}#endif

KcgMatch.cpp

此处将原文里面的
namespace kcg_matching{}给删除了，注意里面的内容是保存的，只删除了这个外面的命名空间，此时就能在本人的main函数中进行调用了。

#include "KcgMatch.h"
#include <math.h>using namespace kcg;#define KCG_EPS 0.00001f
#define KCG_PI	3.1415926535897932384626433832795f
#define KCG_MODEL_SUFFUX string(".yaml")const float AngleRegionTable[16][2] = {0.f		, 22.5f	,22.5f	, 45.f	,45.f	, 67.5f	,67.5f	, 90.f	,90.f	, 112.5f,112.5f	, 135.f	,135.f	, 157.5f,157.5f	, 180.f,180.f	, 202.5f,202.5f	, 225.f,225.f	, 247.5f,247.5f	, 270.f,270.f	, 292.5f,292.5f	, 315.f,315.f	, 337.5f,337.5f	, 360.f
};namespace cv_dnn_nms {template <typename T>static inline bool SortScorePairDescend(const std::pair<float, T>& pair1, const std::pair<float, T>& pair2) {return pair1.first > pair2.first;}inline void GetMaxScoreIndex(const std::vector<float>& scores, const float threshold, const int top_k,std::vector<std::pair<float, int> >& score_index_vec) {for (size_t i = 0; i < scores.size(); ++i){if (scores[i] > threshold){//score_index_vec.push_back(std::make_pair(scores[i], i));std::pair<float, int> psi;psi.first = scores[i];psi.second = (int)i;score_index_vec.push_back(psi);}}std::stable_sort(score_index_vec.begin(), score_index_vec.end(),SortScorePairDescend<int>);if (top_k > 0 && top_k < (int)score_index_vec.size()){score_index_vec.resize(top_k);}}template <typename BoxType>inline void NMSFast_(const std::vector<BoxType>& bboxes,const std::vector<float>& scores, const float score_threshold,const float nms_threshold, const float eta, const int top_k,std::vector<int>& indices, float(*computeOverlap)(const BoxType&, const BoxType&)) {CV_Assert(bboxes.size() == scores.size());std::vector<std::pair<float, int> > score_index_vec;GetMaxScoreIndex(scores, score_threshold, top_k, score_index_vec);float adaptive_threshold = nms_threshold;indices.clear();for (size_t i = 0; i < score_index_vec.size(); ++i) {const int idx = score_index_vec[i].second;bool keep = true;for (int k = 0; k < (int)indices.size() && keep; ++k) {const int kept_idx = indices[k];float overlap = computeOverlap(bboxes[idx], bboxes[kept_idx]);keep = overlap <= adaptive_threshold;}if (keep)indices.push_back(idx);if (keep && eta < 1 && adaptive_threshold > 0.5) {adaptive_threshold *= eta;}}}template<typename _Tp> static inlinedouble jaccardDistance__(const Rect_<_Tp>& a, const Rect_<_Tp>& b) {_Tp Aa = a.area();_Tp Ab = b.area();if ((Aa + Ab) <= std::numeric_limits<_Tp>::epsilon()) {// jaccard_index = 1 -> distance = 0return 0.0;}double Aab = (a & b).area();// distance = 1 - jaccard_indexreturn 1.0 - Aab / (Aa + Ab - Aab);}template <typename T>static inline float rectOverlap(const T& a, const T& b) {return 1.f - static_cast<float>(jaccardDistance__(a, b));}void NMSBoxes(const std::vector<Rect>& bboxes, const std::vector<float>& scores,const float score_threshold, const float nms_threshold,std::vector<int>& indices, const float eta = 1, const int top_k = 0) {NMSFast_(bboxes, scores, score_threshold, nms_threshold, eta, top_k, indices, rectOverlap);}} // end namespace cv_dnn_nmsKcgMatch::KcgMatch(string model_root, string class_name) {assert(!model_root.empty() && "model_root should not empty.");assert(!class_name.empty() && "class_name should not empty.");if (model_root[model_root.length() - 1] != '/') {model_root.push_back('/');}model_root_ = model_root;class_name_ = class_name;/// Create 180*180 tablefor (int i = 0; i < 180; i++) {for (int j = 0; j < 180; j++) {float rad = (i - j) * KCG_PI / 180.f;score_table_[i][j] = fabs(cosf(rad));}}/// Create 8*8 tableATTR_ALIGN(8) unsigned char score_table_8d[8][8];for (int i = 0; i < 8; i++) {for (int j = 0; j < 8; j++) {float rad = (i - j) * (180.f / 8.f) * KCG_PI / 180.f;score_table_8d[i][j] = (unsigned char)(fabs(cosf(rad))*100.f);}}/// Create 8*256 tablefor (int i = 0; i < 8; i++) {for (int j = 0; j < 256; j++) {unsigned char max_score = 0;for (int shift_time = 0; shift_time < 8; shift_time++) {unsigned char flg = (j >> shift_time) & 0b00000001;if (flg) {if (score_table_8d[i][shift_time] > max_score) {max_score = score_table_8d[i][shift_time];}}}score_table_8map_[i][j] = max_score;}}}KcgMatch::~KcgMatch() {}void KcgMatch::MakingTemplates(Mat model, AngleRange angle_range, ScaleRange scale_range,int num_features, float weak_thresh, float strong_thresh, Mat mask) {ClearModel();PaddingModelAndMask(model, mask, scale_range.end);angle_range_ = angle_range;scale_range_ = scale_range;vector<ShapeInfo> shape_infos = ProduceShapeInfos(angle_range, scale_range);vector<Mat> l0_mdls; l0_mdls.clear();vector<Mat> l0_msks; l0_msks.clear();for (int s = 0; s < shape_infos.size(); s++) {l0_mdls.push_back(MdlOf(model, shape_infos[s]));l0_msks.push_back(MskOf(mask, shape_infos[s]));}for (int p = 0; p <= PyramidLevel_7; p++) {for (int s = 0; s < shape_infos.size(); s++) {Mat mdl_pyrd = l0_mdls[s];Mat msk_pyrd = l0_msks[s];if (p > 0) {Size sz = Size(l0_mdls[s].cols >> 1, l0_mdls[s].rows >> 1);pyrDown(l0_mdls[s], mdl_pyrd, sz);pyrDown(l0_msks[s], msk_pyrd, sz);}erode(msk_pyrd, msk_pyrd, Mat(), Point(-1, -1), 1, BORDER_REPLICATE);l0_mdls[s] = mdl_pyrd;l0_msks[s] = msk_pyrd;int features_pyrd = (int)((num_features >> p) * shape_infos[s].scale);Mat mag8, angle8, quantized_angle8;QuantifyEdge(mdl_pyrd, angle8, quantized_angle8, mag8, weak_thresh, false);Template templ = ExtractTemplate(angle8, quantized_angle8, mag8,shape_infos[s], PyramidLevel(p),weak_thresh, strong_thresh,features_pyrd, msk_pyrd);templ_all_[p].push_back(templ);Mat mag180, angle180, quantized_angle180;QuantifyEdge(mdl_pyrd, angle180, quantized_angle180, mag180, weak_thresh, true);templ = ExtractTemplate(angle180, quantized_angle180, mag180,shape_infos[s], PyramidLevel(p),weak_thresh, strong_thresh,features_pyrd, msk_pyrd);templ_all_[p + 8].push_back(templ);/// draw/*Mat draw_mask;msk_pyrd.copyTo(draw_mask);DrawTemplate(draw_mask, templ, Scalar(0));imshow("draw_mask", draw_mask);waitKey(1);*/}cout << "train pyramid level " << p << " complete." << endl;}SaveModel();}vector<Match> KcgMatch::Matching(Mat source, float score_thresh, float overlap,float mag_thresh, float greediness, PyramidLevel pyrd_level, int T, int top_k,MatchingStrategy strategy, const Mat mask) {InitMatchParameter(score_thresh, overlap, mag_thresh, greediness, T, top_k, strategy);GetAllPyramidLevelValidSource(source, pyrd_level);vector<Match> matches;matches = MatchingPyrd8(sources_[pyrd_level], pyrd_level, region8_idxes_);matches = GetTopKMatches(matches);matches = ReconfirmMatches(matches, pyrd_level);matches = GetTopKMatches(matches);matches = MatchingFinal(matches, pyrd_level);matches = GetTopKMatches(matches);return matches;}void KcgMatch::DrawMatches(Mat &image, vector<Match> matches, Scalar color) {//#pragma omp parallel forfor (int i = 0; i < matches.size(); i++) {auto match = matches[i];auto templ = templ_all_[8][match.template_id];int w = match.x + templ.w;int h = match.y + templ.h;for (int i = 0; i < (int)templ.features.size(); i++) {auto feature = templ.features[i];//circle(image, cv::Point(match.x + feature.x, match.y + feature.y), 1, color, 1);line(image,Point(match.x + feature.x, match.y + feature.y),Point(match.x + feature.x, match.y + feature.y),color, 1);}//用来框选出矩形框的cv::rectangle(image, { match.x, match.y }, { w, h }, color, 1);char info[128];sprintf_s(info,"%.2f%% [%.2f, %.2f]",match.similarity * 100,templ.shape_info.angle,templ.shape_info.scale);cv::putText(image,info,Point(match.x, match.y), FONT_HERSHEY_PLAIN, 1.f, color, 1);}}void KcgMatch::PaddingModelAndMask(Mat &model, Mat &mask, float max_scale) {CV_Assert(!model.empty() && "model is empty.");if (mask.empty())mask = Mat(model.size(), CV_8UC1, { 255 });elseCV_Assert(model.size() == mask.size());int min_side_length = std::min(model.rows, model.cols);int diagonal_line_length =(int)ceil(std::sqrt(model.rows*model.rows + model.cols*model.cols)*max_scale);int padding = ((diagonal_line_length - min_side_length) >> 1) + 16;int double_padding = (padding << 1);Mat model_padded = Mat(model.rows + double_padding, model.cols + double_padding, model.type(), Scalar::all(0));model.copyTo(model_padded(Rect(padding, padding, model.cols, model.rows)));Mat mask_padded = Mat(mask.rows + double_padding, mask.cols + double_padding, mask.type(), Scalar::all(0));mask.copyTo(mask_padded(Rect(padding, padding, mask.cols, mask.rows)));model = model_padded;mask = mask_padded;}vector<ShapeInfo> KcgMatch::ProduceShapeInfos(AngleRange angle_range, ScaleRange scale_range) {assert(scale_range.begin > KCG_EPS && scale_range.end > KCG_EPS);assert(angle_range.end >= angle_range.begin);assert(scale_range.end >= scale_range.begin);assert(angle_range.step > KCG_EPS);assert(scale_range.step > KCG_EPS);vector<ShapeInfo> shape_infos;shape_infos.clear();for (float scale = scale_range.begin; scale <= scale_range.end + KCG_EPS; scale += scale_range.step) {for (float angle = angle_range.begin; angle <= angle_range.end + KCG_EPS; angle += angle_range.step) {ShapeInfo info;info.angle = angle;info.scale = scale;shape_infos.push_back(info);}}return shape_infos;}Mat KcgMatch::Transform(Mat src, float angle, float scale) {Mat dst;Point center(src.cols / 2, src.rows / 2);Mat rot_mat = cv::getRotationMatrix2D(center, angle, scale);warpAffine(src, dst, rot_mat, src.size());return dst;}Mat KcgMatch::MdlOf(Mat model, ShapeInfo info) {return Transform(model, info.angle, info.scale);}Mat KcgMatch::MskOf(Mat mask, ShapeInfo info) {return (Transform(mask, info.angle, info.scale) > 0);}void KcgMatch::DrawTemplate(Mat &image, Template templ, Scalar color) {for (int i = 0; i < templ.features.size(); i++) {auto feature = templ.features[i];line(image,Point(templ.x + feature.x, templ.y + feature.y),Point(templ.x + feature.x, templ.y + feature.y),color, 1);}}void KcgMatch::QuantifyEdge(Mat image, Mat &angle, Mat &quantized_angle, Mat &mag, float mag_thresh, bool calc_180) {Mat dx, dy;//Sobel(image, dx, CV_32F, 1, 0, 3, 1.0, 0.0, BORDER_REPLICATE);//Sobel(image, dy, CV_32F, 0, 1, 3, 1.0, 0.0, BORDER_REPLICATE);float mask_x[3][3] = { { -1,0,1 },{ -2,0,2 },{ -1,0,1 } };float mask_y[3][3] = { { 1,2,1 },{ 0,0,0 },{ -1,-2,-1 } };Mat kernel_x = Mat(3, 3, CV_32F, mask_x);Mat kernel_y = Mat(3, 3, CV_32F, mask_y);filter2D(image, dx, CV_32F, kernel_x);filter2D(image, dy, CV_32F, kernel_y);//dx = abs(dx);//dy = abs(dy);mag = dx.mul(dx) + dy.mul(dy);phase(dx, dy, angle, true);if (calc_180)Quantify180(angle, quantized_angle, mag, mag_thresh);elseQuantify8(angle, quantized_angle, mag, mag_thresh);}void KcgMatch::Quantify8(Mat angle, Mat &quantized_angle, Mat mag, float mag_thresh) {Mat_<unsigned char> quantized_unfiltered;angle.convertTo(quantized_unfiltered, CV_8U, 16.0f / 360.0f);for (int r = 0; r < angle.rows; ++r){unsigned char *quant_ptr = quantized_unfiltered.ptr<unsigned char>(r);for (int c = 0; c < angle.cols; ++c){quant_ptr[c] &= 7;}}//quantized_unfiltered.copyTo(quantized_angle);quantized_angle = Mat::zeros(angle.size(), CV_8U);for (int r = 0; r < quantized_angle.rows; ++r) {quantized_angle.ptr<unsigned char>(r)[0] = 255;quantized_angle.ptr<unsigned char>(r)[quantized_angle.cols - 1] = 255;}for (int c = 0; c < quantized_angle.cols; ++c) {quantized_angle.ptr<unsigned char>(0)[c] = 255;quantized_angle.ptr<unsigned char>(quantized_angle.rows - 1)[c] = 255;}for (int r = 1; r < angle.rows - 1; ++r){float *mag_ptr = mag.ptr<float>(r);for (int c = 1; c < angle.cols - 1; ++c){if (mag_ptr[c] >= (mag_thresh * mag_thresh)){int histogram[8] = { 0, 0, 0, 0, 0, 0, 0, 0 };unsigned char *patch3x3_row = &quantized_unfiltered(r - 1, c - 1);histogram[patch3x3_row[0]]++;histogram[patch3x3_row[1]]++;histogram[patch3x3_row[2]]++;patch3x3_row += quantized_unfiltered.step1();histogram[patch3x3_row[0]]++;histogram[patch3x3_row[1]]++;histogram[patch3x3_row[2]]++;patch3x3_row += quantized_unfiltered.step1();histogram[patch3x3_row[0]]++;histogram[patch3x3_row[1]]++;histogram[patch3x3_row[2]]++;// Find bin with the most votes from the patchint max_votes = 0;int index = -1;for (int i = 0; i < 8; ++i){if (max_votes < histogram[i]){index = i;max_votes = histogram[i];}}// Only accept the quantization if majority of pixels in the patch agreestatic const int NEIGHBOR_THRESHOLD = 5;if (max_votes >= NEIGHBOR_THRESHOLD)quantized_angle.at<unsigned char>(r, c) = index;elsequantized_angle.at<unsigned char>(r, c) = 255;}else{quantized_angle.at<unsigned char>(r, c) = 255;}}}}void KcgMatch::Quantify180(Mat angle, Mat &quantized_angle, Mat mag, float mag_thresh) {quantized_angle = Mat::zeros(angle.size(), CV_8U);
#pragma omp parallel forfor (int r = 0; r < angle.rows; ++r){unsigned char *quantized_angle_ptr = quantized_angle.ptr<unsigned char>(r);float *angle_ptr = angle.ptr<float>(r);float *mag_ptr = mag.ptr<float>(r);for (int c = 0; c < angle.cols; ++c){if (mag_ptr[c] >= (mag_thresh * mag_thresh))quantized_angle_ptr[c] = (int)round(angle_ptr[c]) % 180;elsequantized_angle_ptr[c] = 255;}}}Template KcgMatch::ExtractTemplate(Mat angle, Mat quantized_angle, Mat mag, ShapeInfo shape_info,PyramidLevel pl, float weak_thresh, float strong_thresh, int num_features, Mat mask) {Mat local_angle = Mat(angle.size(), angle.type());for (int r = 0; r < angle.rows; ++r) {float *angle_ptr = angle.ptr<float>(r);float *local_angle_ptr = local_angle.ptr<float>(r);for (int c = 0; c < angle.cols; ++c) {float dir = angle_ptr[c];if ((dir > 0. && dir < 22.5) || (dir > 157.5 && dir < 202.5) || (dir > 337.5 && dir < 360.))local_angle_ptr[c] = 0.f;else if ((dir > 22.5 && dir < 67.5) || (dir > 202.5 && dir < 247.5))local_angle_ptr[c] = 45.f;else if ((dir > 67.5 && dir < 112.5) || (dir > 247.5 && dir < 292.5))local_angle_ptr[c] = 90.f;else if ((dir > 112.5 && dir < 157.5) || (dir > 292.5 && dir < 337.5))local_angle_ptr[c] = 135.f;elselocal_angle_ptr[c] = 0.f;}}vector<Candidate> candidates;candidates.clear();bool no_mask = mask.empty();float weak_sq = weak_thresh * weak_thresh;float strong_sq = strong_thresh * strong_thresh;float pre_grad, lst_grad;for (int r = 1; r < mag.rows - 1; ++r){const unsigned char *mask_ptr = no_mask ? NULL : mask.ptr<unsigned char>(r);const float* pre_ptr = mag.ptr<float>(r - 1);const float* cur_ptr = mag.ptr<float>(r);const float* lst_ptr = mag.ptr<float>(r + 1);float *local_angle_ptr = local_angle.ptr<float>(r);for (int c = 1; c < mag.cols - 1; ++c){if (no_mask || mask_ptr[c]){switch ((int)local_angle_ptr[c]) {case 0:pre_grad = cur_ptr[c - 1];lst_grad = cur_ptr[c + 1];break;case 45:pre_grad = pre_ptr[c + 1];lst_grad = lst_ptr[c - 1];break;case 90:pre_grad = pre_ptr[c];lst_grad = lst_ptr[c];break;case 135:pre_grad = pre_ptr[c - 1];lst_grad = lst_ptr[c + 1];break;}if ((cur_ptr[c] > pre_grad) && (cur_ptr[c] > lst_grad)) {float score = cur_ptr[c];bool validity = false;if (score >= weak_sq) {if (score >= strong_sq) {validity = true;}else {if (((pre_ptr[c - 1]) >= strong_sq) ||((pre_ptr[c]) >= strong_sq) ||((pre_ptr[c + 1]) >= strong_sq) ||((cur_ptr[c - 1]) >= strong_sq) ||((cur_ptr[c + 1]) >= strong_sq) ||((lst_ptr[c - 1]) >= strong_sq) ||((lst_ptr[c]) >= strong_sq) ||((lst_ptr[c + 1]) >= strong_sq)){validity = true;}}}if (validity == true &&quantized_angle.at<unsigned char>(r, c) != 255) {Candidate cd;cd.score = score;cd.feature.x = c;cd.feature.y = r;cd.feature.lbl = quantized_angle.at<unsigned char>(r, c);candidates.push_back(cd);}}}}}Template templ;templ.shape_info.angle = shape_info.angle;templ.shape_info.scale = shape_info.scale;templ.pyramid_level = pl;templ.is_valid = 0;templ.features.clear();if (candidates.size() >= num_features && num_features > 0) {std::stable_sort(candidates.begin(), candidates.end());float distance = static_cast<float>(candidates.size() / num_features + 1);templ = SelectScatteredFeatures(candidates, num_features, distance);}else {for (int c = 0; c < candidates.size(); c++) {templ.features.push_back(candidates[c].feature);}}if (templ.features.size() > 0) {templ.is_valid = 1;CropTemplate(templ);}return templ;}Template KcgMatch::SelectScatteredFeatures(vector<Candidate> candidates, int num_features, float distance) {Template templ;templ.features.clear();float distance_sq = distance * distance;int i = 0;while (templ.features.size() < num_features) {Candidate c = candidates[i];// Add if sufficient distance away from any previously chosen featurebool keep = true;for (int j = 0; (j < (int)templ.features.size()) && keep; ++j){Feature f = templ.features[j];keep = ((c.feature.x - f.x) * (c.feature.x - f.x) + (c.feature.y - f.y) * (c.feature.y - f.y) >= distance_sq);}if (keep)templ.features.push_back(c.feature);if (++i == (int)candidates.size()){// Start back at beginning, and relax required distancei = 0;distance -= 1.0f;distance_sq = distance * distance;// if (distance < 3)// {//     // we don't want two features too close//     break;// }}}return templ;}Rect KcgMatch::CropTemplate(Template &templ) {int min_x = std::numeric_limits<int>::max();int min_y = std::numeric_limits<int>::max();int max_x = std::numeric_limits<int>::min();int max_y = std::numeric_limits<int>::min();// First pass: find min/max feature x,y for (int i = 0; i < (int)templ.features.size(); ++i){int x = templ.features[i].x;int y = templ.features[i].y;min_x = std::min(min_x, x);min_y = std::min(min_y, y);max_x = std::max(max_x, x);max_y = std::max(max_y, y);}/// @todo Why require even min_x, min_y?if (min_x % 2 == 1)--min_x;if (min_y % 2 == 1)--min_y;// Second pass: set width/height and shift all feature positionstempl.w = (max_x - min_x);templ.h = (max_y - min_y);templ.x = min_x;templ.y = min_y;for (int i = 0; i < (int)templ.features.size(); ++i){templ.features[i].x -= templ.x;templ.features[i].y -= templ.y;}return Rect(min_x, min_y, max_x - min_x, max_y - min_y);}void KcgMatch::LoadRegion8Idxes() {int keys[16] = { 0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0 };region8_idxes_.clear();int angle_region = (int)((angle_range_.end - angle_range_.begin) / angle_range_.step) + 1;int scale_region = (int)((scale_range_.end - scale_range_.begin) / scale_range_.step) + 1;for (int ar = 0; ar < angle_region; ar++) {float cur_agl = templ_all_[PyramidLevel_0][ar].shape_info.angle;if (cur_agl < 0.f) cur_agl += 360.f;int idx = 0;for (int i = 0; i < 16; i++) {if (cur_agl >= AngleRegionTable[i][0] &&cur_agl < AngleRegionTable[i][1]) {idx = i;break;}}if (keys[idx] == 0) {for (int sr = 0; sr < scale_region; sr++) {region8_idxes_.push_back(ar + sr * angle_region);}}keys[idx] = 1;}}void KcgMatch::SaveModel() {int total_templ = 0;for (int i = 0; i < PyramidLevel_TabooUse; i++) {total_templ += (int)templ_all_[i].size();}assert((total_templ / PyramidLevel_TabooUse) == templ_all_[0].size());int match_range_size = (int)templ_all_[0].size();string model_name = model_root_ + class_name_ + KCG_MODEL_SUFFUX;FileStorage fs(model_name, FileStorage::WRITE);fs << "class_name" << class_name_;fs << "total_pyramid_levels" << PyramidLevel_7;fs << "angle_range_bgin" << angle_range_.begin;fs << "angle_range_end" << angle_range_.end;fs << "angle_range_step" << angle_range_.step;fs << "scale_range_bgin" << scale_range_.begin;fs << "scale_range_end" << scale_range_.end;fs << "scale_range_step" << scale_range_.step;fs << "templates"<< "[";{for (int i = 0; i < match_range_size; i++) {fs << "{";fs << "template_id" << int(i);fs << "template_pyrds"<< "[";{for (int j = 0; j < PyramidLevel_TabooUse; j++) {auto templ = templ_all_[j][i];fs << "{";fs << "id" << int(i);fs << "pyramid_level" << templ.pyramid_level;fs << "is_valid" << templ.is_valid;fs << "x" << templ.x;fs << "y" << templ.y;fs << "w" << templ.w;fs << "h" << templ.h;fs << "shape_scale" << templ.shape_info.scale;fs << "shape_angle" << templ.shape_info.angle;fs << "feature_size" << (int)templ.features.size();fs << "features"<< "[";{for (int k = 0; k < (int)templ.features.size(); k++) {auto feat = templ.features[k];fs << "[:" << feat.x << feat.y << feat.lbl << "]";}}fs << "]";fs << "}";}}fs << "]";fs << "}";}}fs << "]";}void KcgMatch::LoadModel() {ClearModel();string model_name = model_root_ + class_name_ + KCG_MODEL_SUFFUX;FileStorage fs(model_name, FileStorage::READ);assert(fs.isOpened() && "load model failed.");FileNode fn = fs.root();angle_range_.begin = fn["angle_range_bgin"];angle_range_.end = fn["angle_range_end"];angle_range_.step = fn["angle_range_step"];scale_range_.begin = fn["scale_range_bgin"];scale_range_.end = fn["scale_range_end"];scale_range_.step = fn["scale_range_step"];FileNode tps_fn = fn["templates"];FileNodeIterator tps_it = tps_fn.begin(), tps_it_end = tps_fn.end();for (; tps_it != tps_it_end; ++tps_it){int template_id = (*tps_it)["template_id"];FileNode pyrds_fn = (*tps_it)["template_pyrds"];FileNodeIterator pyrd_it = pyrds_fn.begin(), pyrd_it_end = pyrds_fn.end();int pl = 0;for (; pyrd_it != pyrd_it_end; ++pyrd_it){FileNode pyrd_fn = (*pyrd_it);Template templ;templ.id = pyrd_fn["id"];templ.pyramid_level = pyrd_fn["pyramid_level"];templ.is_valid = pyrd_fn["is_valid"];templ.x = pyrd_fn["x"];templ.y = pyrd_fn["y"];templ.w = pyrd_fn["w"];templ.h = pyrd_fn["h"];templ.shape_info.scale = pyrd_fn["shape_scale"];templ.shape_info.angle = pyrd_fn["shape_angle"];FileNode features_fn = pyrd_fn["features"];FileNodeIterator feature_it = features_fn.begin(), feature_it_end = features_fn.end();for (; feature_it != feature_it_end; ++feature_it){FileNode feature_fn = (*feature_it);FileNodeIterator feature_info = feature_fn.begin();Feature feat;feature_info >> feat.x >> feat.y >> feat.lbl;templ.features.push_back(feat);}templ_all_[pl].push_back(templ);pl++;}}LoadRegion8Idxes();}void KcgMatch::ClearModel() {for (int i = 0; i < PyramidLevel_TabooUse; i++) {templ_all_[i].clear();}}void KcgMatch::InitMatchParameter(float score_thresh, float overlap, float mag_thresh, float greediness, int T, int top_k, MatchingStrategy strategy) {score_thresh_ = score_thresh;overlap_ = overlap;mag_thresh_ = mag_thresh;greediness_ = greediness;T_ = T;top_k_ = top_k;strategy_ = strategy;}void KcgMatch::GetAllPyramidLevelValidSource(cv::Mat &source, PyramidLevel pyrd_level) {sources_.clear();for (int pl = 0; pl <= pyrd_level; pl++) {Mat source_pyrd;if (pl == 0) source_pyrd = source;else pyrDown(source, source_pyrd, Size(source.cols >> 1, source.rows >> 1));source = source_pyrd;sources_.push_back(source_pyrd);}}vector<Match> KcgMatch::GetTopKMatches(vector<Match> matches) {vector<Match> top_k_matches;top_k_matches.clear();if (top_k_ > 0 && (top_k_ < matches.size()) && (matches.size() > 0)) {int k = 0;top_k_matches.push_back(matches[0]);for (int m = 1; m < matches.size(); m++) {if (matches[m].similarity < matches[m - 1].similarity) {++k;if (k >= top_k_) break;}top_k_matches.push_back(matches[m]);}}else{top_k_matches = matches;}return top_k_matches;}vector<Match> KcgMatch::DoNmsMatches(vector<Match> matches, PyramidLevel pl, float overlap) {vector<Rect> boxes; boxes.clear();vector<float> scores; scores.clear();vector<int> indices; indices.clear();for (int m = 0; m < matches.size(); m++) {auto templ = templ_all_[pl][matches[m].template_id];Rect box = Rect(matches[m].x, matches[m].y, templ.w, templ.h);boxes.insert(boxes.end(), box);scores.insert(scores.end(), matches[m].similarity);}cv_dnn_nms::NMSBoxes(boxes, scores, overlap, overlap, indices);vector<Match> final_matches; final_matches.clear();for (auto index : indices) {final_matches.push_back(matches[index]);}return final_matches;}vector<Match> KcgMatch::MatchingPyrd180(Mat src, PyramidLevel pl, vector<int> region_idxes) {pl = PyramidLevel(pl + 8);vector<Match> matches; matches.clear();Mat angle, quantized_angle, mag;QuantifyEdge(src, angle, quantized_angle, mag, mag_thresh_, true);
#pragma omp parallel {int tlsz = region_idxes.empty() ? ((int)templ_all_[pl].size()) : ((int)region_idxes.size());
#pragma omp for nowaitfor (int t = 0; t < tlsz; t++) {Template templ = region_idxes.empty() ? (templ_all_[pl][t]) : (templ_all_[pl][region_idxes[t]]);for (int r = 0; r < quantized_angle.rows - templ.h; r++) {for (int c = 0; c < quantized_angle.cols - templ.w; c++) {int fsz = (int)templ.features.size();float partial_sum = 0.f;bool valid = true;for (int f = 0; f < fsz; f++) {Feature feat = templ.features[f];int sidx = quantized_angle.ptr<unsigned char>(r + feat.y)[c + feat.x];int tidx = feat.lbl;if (sidx != 255) {partial_sum += score_table_[sidx][tidx];}if (partial_sum + (fsz - f) * greediness_ < score_thresh_ * fsz) {valid = false;break;}}if (valid) {float score = partial_sum / fsz;if (score >= score_thresh_) {Match match;match.x = c;match.y = r;match.similarity = score;match.template_id = templ.id;
#pragma omp criticalmatches.insert(matches.end(), match);}}}}}}matches = DoNmsMatches(matches, pl, overlap_);return matches;}vector<Match> KcgMatch::MatchingPyrd8(Mat src, PyramidLevel pl, vector<int> region_idxes) {vector<Match> matches; matches.clear();Mat angle, quantized_angle, mag;QuantifyEdge(src, angle, quantized_angle, mag, mag_thresh_, false);Mat spread_angle;Spread(quantized_angle, spread_angle, T_);vector<Mat> response_maps;ComputeResponseMaps(spread_angle, response_maps);
#pragma omp parallel {int tlsz = region_idxes.empty() ? ((int)templ_all_[pl].size()) : ((int)region_idxes.size());
#pragma omp for nowaitfor (int t = 0; t < tlsz; t++) {Template templ = region_idxes.empty() ? (templ_all_[pl][t]) : (templ_all_[pl][region_idxes[t]]);for (int r = 0; r < quantized_angle.rows - templ.h; r += T_) {for (int c = 0; c < quantized_angle.cols - templ.w; c += T_) {int fsz = (int)templ.features.size();int partial_sum = 0;bool valid = true;for (int f = 0; f < fsz; f++) {Feature feat = templ.features[f];int label = feat.lbl;partial_sum +=response_maps[label].ptr<unsigned char>(r + feat.y)[c + feat.x];if (partial_sum + (fsz - f) * greediness_ < score_thresh_ * fsz) {valid = false;break;}}if (valid) {float score = partial_sum / (100.f * fsz);if (score >= score_thresh_) {Match match;match.x = c;match.y = r;match.similarity = score;match.template_id = templ.id;
#pragma omp criticalmatches.insert(matches.end(), match);}}}}}}matches = DoNmsMatches(matches, pl, overlap_);return matches;}void KcgMatch::Spread(const Mat quantized_angle, Mat &spread_angle, int T) {spread_angle = Mat::zeros(quantized_angle.size(), CV_8U);int cols = quantized_angle.cols;int rows = quantized_angle.rows;int half_T = 0;if (T != 1) half_T = T / 2;
#pragma omp parallel forfor (int r = half_T; r < rows - half_T; r++) {for (int c = half_T; c < cols - half_T; c++) {for (int i = -half_T; i <= half_T; i++) {for (int j = -half_T; j <= half_T; j++) {unsigned char shift_bits =quantized_angle.ptr<unsigned char>(r + i)[c + j];if (shift_bits < 8) {spread_angle.ptr<unsigned char>(r)[c] |=(unsigned char)(1 << shift_bits);}}}}}}void KcgMatch::ComputeResponseMaps(const Mat spread_angle, vector<Mat> &response_maps) {response_maps.clear();for (int i = 0; i < 8; i++) {Mat rm;rm.create(spread_angle.size(), CV_8U);response_maps.push_back(rm);}int cols = spread_angle.cols;int rows = spread_angle.rows;
#pragma omp parallel forfor (int i = 0; i < 8; i++) {for (int r = 0; r < rows; r++) {for (int c = 0; c < cols; c++) {response_maps[i].ptr<unsigned char>(r)[c] =score_table_8map_[i][spread_angle.ptr<unsigned char>(r)[c]];}}}}bool KcgMatch::CalcPyUpRoiAndStartPoint(PyramidLevel cur_pl, PyramidLevel obj_pl, Match match,Mat &r, Point &p, bool is_padding) {auto templ = templ_all_[cur_pl][match.template_id];int padding = 0;if (is_padding) {int min_side = std::min(templ.w, templ.h);int diagonal_line_length = (int)ceil(sqrt(templ.w*templ.w + templ.h*templ.h));padding = diagonal_line_length - min_side;}int err_pl = cur_pl - obj_pl;int T = 2 * T_;int extend_pixel = 1;cv::Point bp, ep;int multiple = (1 << err_pl);match.x -= (T + padding) / 2;match.y -= (T + padding) / 2;templ.w += (T + padding);templ.h += (T + padding);bp.x = (match.x - extend_pixel) * multiple;bp.y = (match.y - extend_pixel) * multiple;ep.x = (match.x + templ.w + extend_pixel) * multiple;ep.y = (match.y + templ.h + extend_pixel) * multiple;if (bp.x < 0) bp.x = 0;if (bp.y < 0) bp.y = 0;if (ep.x < 0) ep.x = 0;if (ep.y < 0) ep.y = 0;if (bp.x >= sources_[obj_pl].cols) bp.x = sources_[obj_pl].cols - 1;if (bp.y >= sources_[obj_pl].rows) bp.y = sources_[obj_pl].rows - 1;if (ep.x >= sources_[obj_pl].cols) ep.x = sources_[obj_pl].cols - 1;if (ep.y >= sources_[obj_pl].rows) ep.y = sources_[obj_pl].rows - 1;if (bp.x != ep.x || bp.y != ep.y) {Rect rect = Rect(bp, ep);Mat roi(sources_[obj_pl], rect);r = roi;p = bp;return true;}else{return false;}}void KcgMatch::CalcRegionIndexes(vector<int> &region_idxes, Match match, MatchingStrategy strategy) {region_idxes.clear();Template templ = templ_all_[PyramidLevel_0][match.template_id];float match_agl = templ.shape_info.angle;float match_sal = templ.shape_info.scale;int angle_region = (int)((angle_range_.end - angle_range_.begin) / angle_range_.step) + 1;int scale_region = (int)((scale_range_.end - scale_range_.begin) / scale_range_.step) + 1;if (strategy <= Strategy_Middling) {if (match_agl < 0.f) match_agl += 360.f;int key = (int)floor(match_agl / 22.5f);float left_agl = match_agl - key * 22.5f;for (int ar = 0; ar < angle_region; ar++) {float cur_agl = templ_all_[PyramidLevel_0][ar].shape_info.angle;if (cur_agl < 0.f) cur_agl += 360.f;int k = key;if (cur_agl >= AngleRegionTable[k][0] && cur_agl < AngleRegionTable[k][1]) {for (int sr = 0; sr < scale_region; sr++) {region_idxes.push_back(ar + sr * angle_region);}}if (strategy == Strategy_Accurate) {if (left_agl < 11.25f) {k = key - 1;if (k < 0) k = 15;if (cur_agl >= AngleRegionTable[k][0] && cur_agl < AngleRegionTable[k][1]) {for (int sr = 0; sr < scale_region; sr++) {region_idxes.push_back(ar + sr * angle_region);}}}else{k = key + 1;if (k > 15) k = 0;if (cur_agl >= AngleRegionTable[k][0] && cur_agl < AngleRegionTable[k][1]) {for (int sr = 0; sr < scale_region; sr++) {region_idxes.push_back(ar + sr * angle_region);}}}}}}else if (strategy == Strategy_Rough) {float err_range = 3.f;for (int ar = 0; ar < angle_region; ar++) {float cur_agl = templ_all_[PyramidLevel_0][ar].shape_info.angle;if (cur_agl >= (match_agl - angle_range_.step * err_range) &&cur_agl <= (match_agl + angle_range_.step * err_range)) {for (int sr = 0; sr < scale_region; sr++) {float cur_sal = templ_all_[PyramidLevel_0][ar + sr * angle_region].shape_info.scale;if (cur_sal >= (match_sal - scale_range_.step * err_range) &&cur_sal <= (match_sal + scale_range_.step * err_range)) {region_idxes.push_back(ar + sr * angle_region);}}}}}}vector<Match> KcgMatch::ReconfirmMatches(vector<Match> matches, PyramidLevel pl) {vector<Match> rf_matches;rf_matches.clear();for (int i = 0; i < matches.size(); i++) {Mat roi;Point sp;CalcPyUpRoiAndStartPoint(pl, pl, matches[i], roi, sp, true);vector<int> region_idxes;CalcRegionIndexes(region_idxes, matches[i], Strategy_Accurate);auto tmp_matches = MatchingPyrd8(roi, pl, region_idxes);if (tmp_matches.size() > 0) {tmp_matches[0].x += sp.x;tmp_matches[0].y += sp.y;rf_matches.push_back(tmp_matches[0]);}}rf_matches = DoNmsMatches(rf_matches, pl, overlap_);return rf_matches;}vector<Match> KcgMatch::MatchingFinal(vector<Match> matches, PyramidLevel pl) {vector<Match> final_matches;final_matches.clear();for (int i = 0; i < matches.size(); i++) {Mat roi;Point sp;CalcPyUpRoiAndStartPoint(pl, PyramidLevel_0, matches[i], roi, sp, false);vector<int> region_idxes;CalcRegionIndexes(region_idxes, matches[i], strategy_);auto tmp_matches = MatchingPyrd180(roi, PyramidLevel_0, region_idxes);if (tmp_matches.size() > 0) {tmp_matches[0].x += sp.x;tmp_matches[0].y += sp.y;final_matches.push_back(tmp_matches[0]);}}final_matches = DoNmsMatches(final_matches, pl, overlap_);return final_matches;}// end namespace kcg_matching

main.cpp

#include "KcgMatch.h"using namespace kcg;int main(int argc, char **argv) {// 实例化KcgMatch // "demo/k"为存储模板的根目录 // "k"为模板的名字KcgMatch kcg("G:/模板/template3", "template3");// 读取模板图像Mat model = imread("G:模板/template3/template.png");// 转灰度if (model.channels() == 3) {cvtColor(model, model, COLOR_BGR2GRAY);}// 指定要制作的模板角度，尺度范围AngleRange ar(-180.f, 180.f, 10.f);ScaleRange sr(0.70f, 1.3f, 0.05f);// 开始制作模板（会在G:/模板/template3的路径下生成一个yaml文件，里面保存着生成的模板特征信息）kcg.MakingTemplates(model, ar, sr, 0, 30.f, 60.f);// 加载模板cout << "Loading model ......" << endl;kcg.LoadModel();cout << "Load succeed." << endl;// 读取搜索图像Mat source = imread("G:/模板/template3/search.png");Mat draw_source;source.copyTo(draw_source);if (source.channels() == 3) {cvtColor(source, source, COLOR_BGR2GRAY);		}//计算匹配时间（不需要windows.h的计算毫秒时间的方法）double dur;clock_t start, end;start = clock();//进行模板匹配auto matches = kcg.Matching(source, 0.80f, 0.1f, 30.f, 0.9f,PyramidLevel_2, 2, 12, Strategy_Accurate);end = clock();dur = (double)(end - start);printf("Use Time:%f\n", (dur / CLOCKS_PER_SEC));cout << "Final match size: " << matches.size() << endl << endl;// 画出匹配结果kcg.DrawMatches(draw_source, matches, Scalar(0, 0, 255));// 画出匹配时间rectangle(draw_source, Rect(Point(0, 0), Point(136, 20)), Scalar(255, 255, 255), -1);cv::putText(draw_source,"time: " + to_string(dur / CLOCKS_PER_SEC) + "s",Point(0, 16), FONT_HERSHEY_PLAIN, 1.f, Scalar(0, 0, 0), 1);// 显示结果图像namedWindow("draw_source", 0);imshow("draw_source", draw_source);imwrite("draw_source.jpg", draw_source);waitKey(0);system("pause");
}

匹配的结果

1. 用于制作模板的图片，使用的是原作者的图片，此处将其命名为template.png,并将此图片放在了template3的文件夹中。图片为下：

2. 搜索图像，即用来寻找的图像如下，将其命名为search.png,也放在了template3的文件夹下。图片如下：

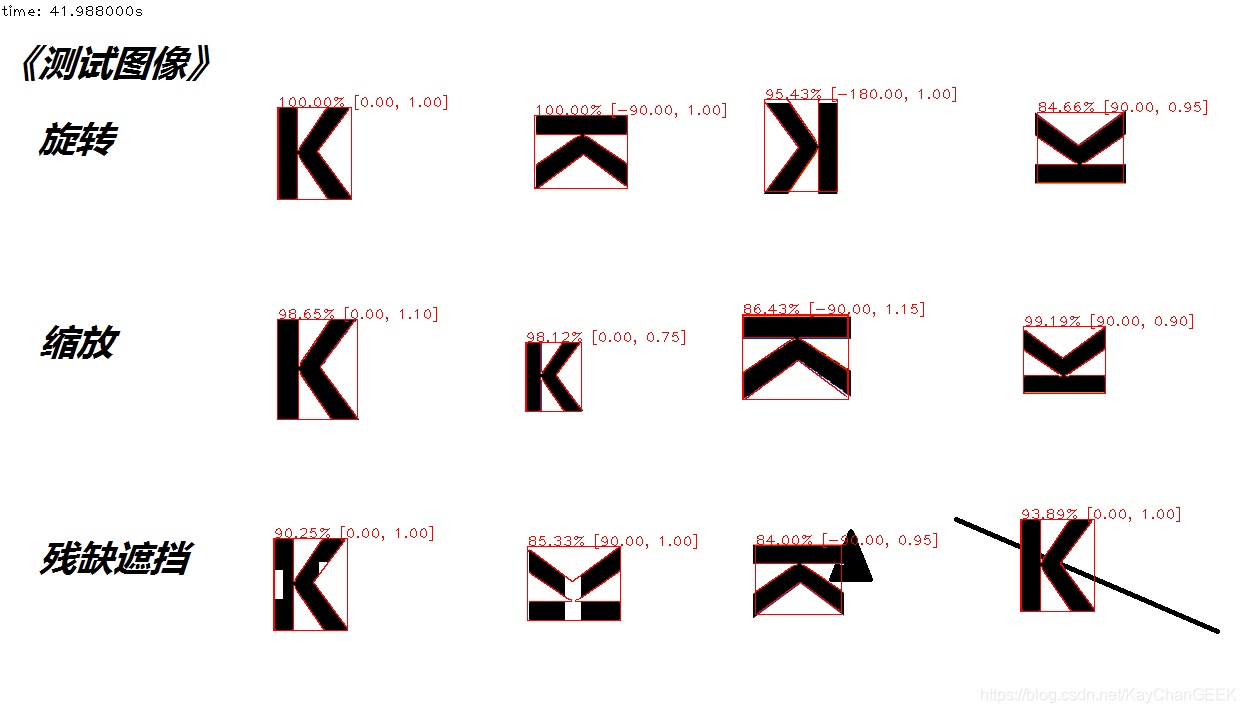

3. 最终匹配的结果如下
