森林图是以统计指标和统计分析方法为基础，用数值运算结果绘制出的图型。它在平面直角坐标系中，以一条垂直的无效线(横坐标刻度为1或0)为中心，用平行于横轴的多条线段描述了每个被纳入研究的效应量和置信区间(CI)，用一个棱形(或其它图形)描述了多个研究合并的效应量及置信区间。它非常简单和直观地描述了Meta分析的统计结果，是Meta分析中最常用的结果表达形式。

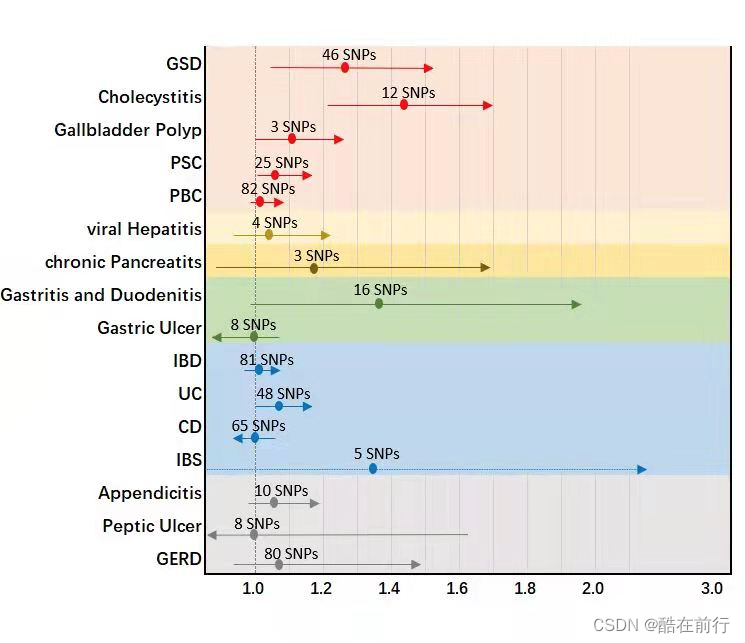

原图

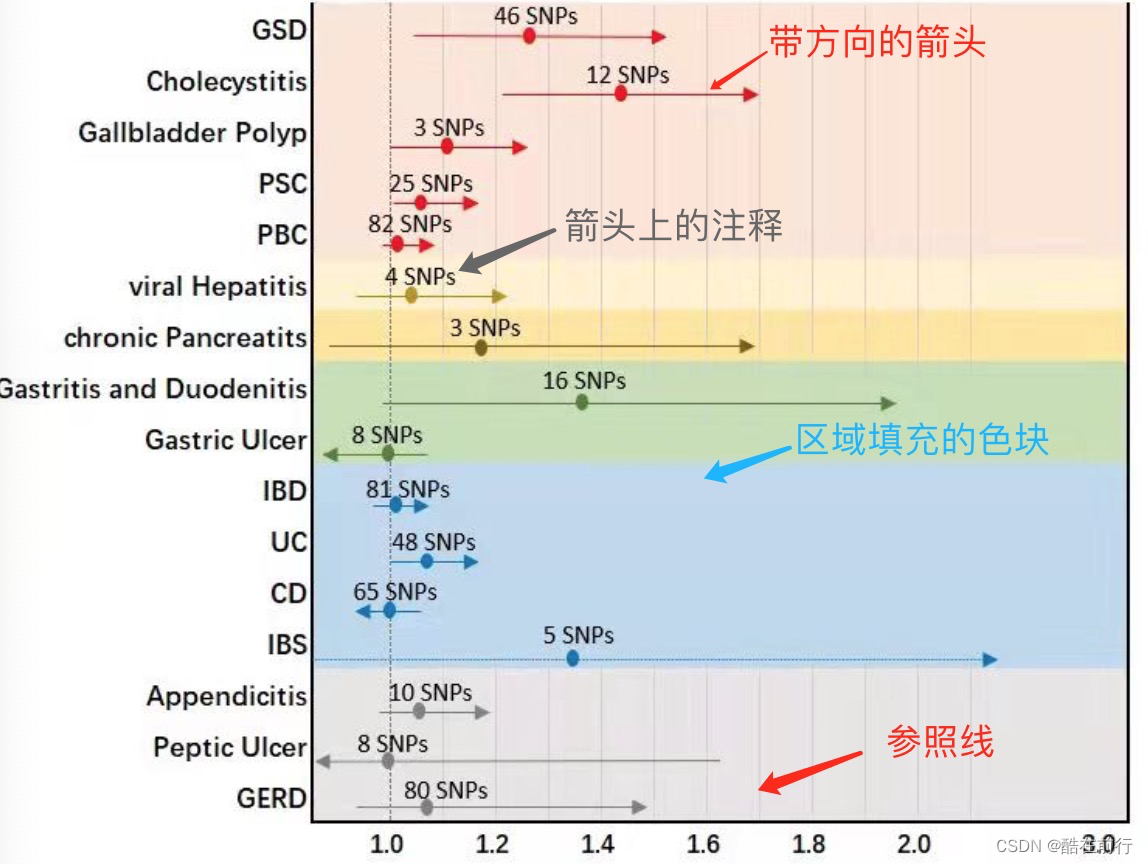

   先看看所需复现的森林图：

接下来，我们来模仿复现这张图。

图片元素拆解

我们可以看到，这张森林图由以下四类元素组成：

1. 带方向的箭头： 可以用geom_curve()函数实现，通过(x=x1, y=y1, xend=x2, yend=y2)中的 (x1, y1)和(x2, y2)指定箭头的方向，当x1=x2时，箭头垂直于x轴；当y1=y2时，箭头垂直于y轴，与例图中一致。
2. 箭头上的注释：可以用annotate()函数实现，通过(x=x1, y=y1, label= “apple”)在图中(x1,y1)的位置注释apple这个单词。
3. 区域填充的色块：可以用geom_rect()函数实现，通过(aes(xmin= x1, ymin= y1, xmax= x2, ymax= y2), fill = “red”, color = “red”)在图中（x1, x2, y1, y2）的位置填充红色的方块，当xmin= -Inf, xmax= Inf时，将沿整个x轴进行填充。
4. 虚化的参照线：可用geom_vline()实现，通过(aes(xintercept=x1), colour= “red”, linetype= “dashed”)在图中x=x1的位置填充红色的参照虚线。假如要绘制垂直于y轴y=y1的线，那么函数就是geom_hline(aes(yintercept= y1))。

所以我们使用ggplot2包便可以完成整张图像的绘制，但值得注意的是，ggplot2的基础逻辑ggplot2包的学习逻辑是图层覆盖，因此我们要按先绘制色块，再添加虚线，再添加箭头和注释的顺序进行画图。

ggplot绘制森林图过程

加载相关程序包和数据

rm(list=ls())library(ggplot2)
library(openxlsx)
library(tidyverse)data<- read.xlsx("Figure.xlsx",1)
mydata<- mutate(data, seq=c(1:nrow(data))) %>%arrange(desc(seq));mydata
mydata$Trait<- factor(mydata$Trait, levels = mydata$Trait)

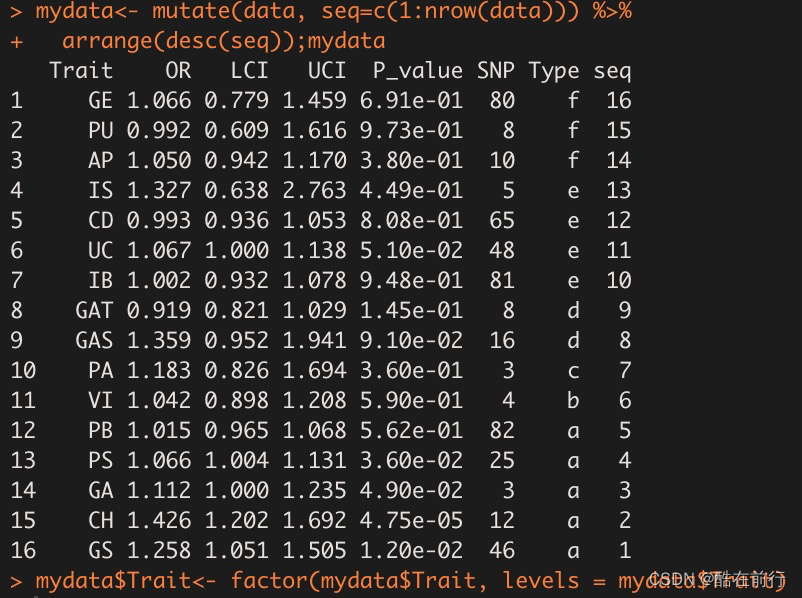

数据中的Trait是y轴左边的标签，OR是图中的原点，LCI与UCL是箭头的起点与终点。

填充色块

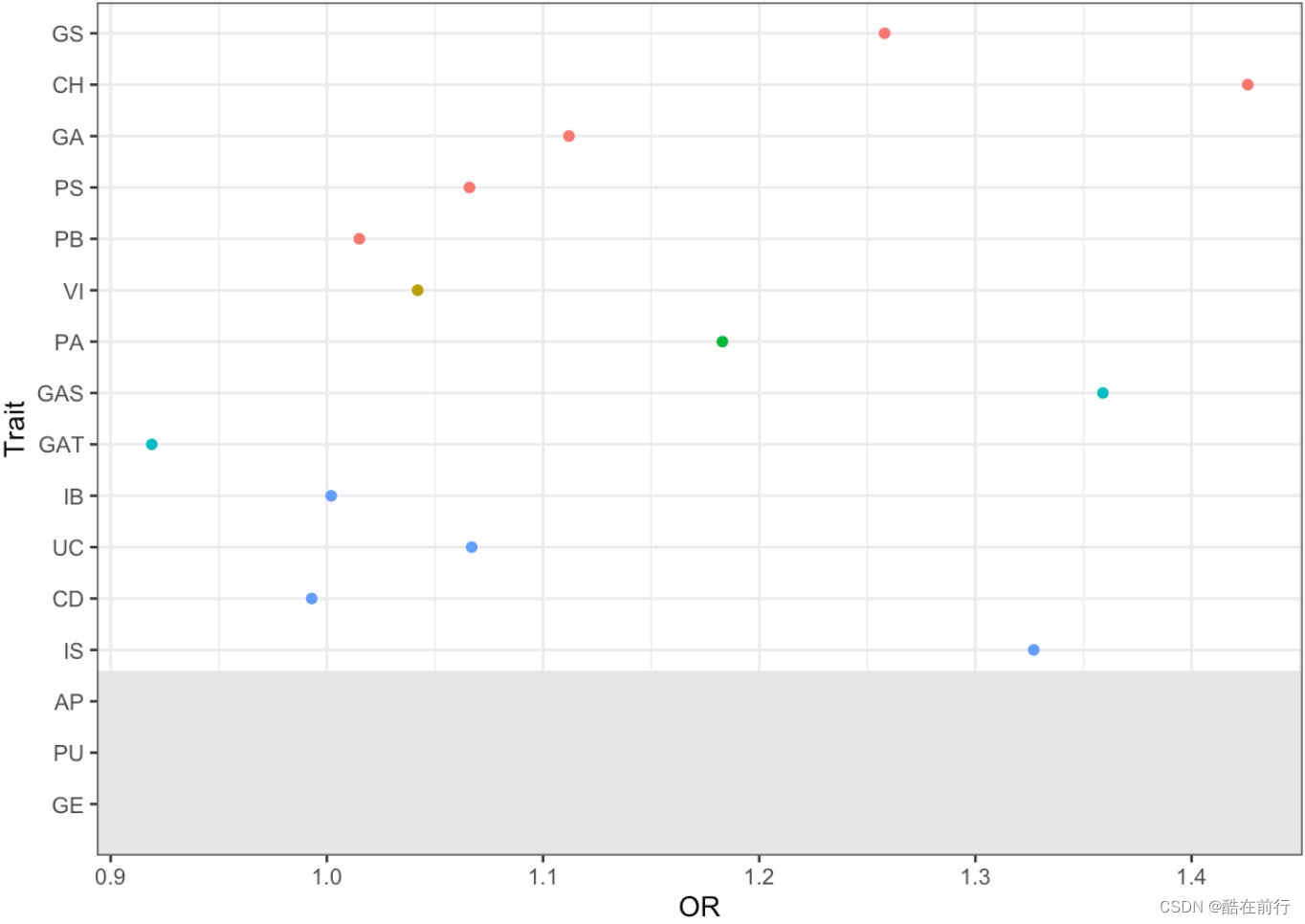

p1<- ggplot(mydata,aes(x=OR,y=Trait, color=Type))+theme_bw()+theme(legend.position = "none")+ #去掉图注geom_point()+geom_rect(aes(xmin = -Inf, ymin = 0,xmax = Inf, ymax = 3.5),#填充0-3.5的棕色色块fill = "#E6E5E3", color = "#E6E5E3", size =1.5);p1

在y=0-3.5的区域填充棕色的色块，要注意的是，fill填充的是方块内部的颜色，color指的是方框的颜色，因此二者需要一致。

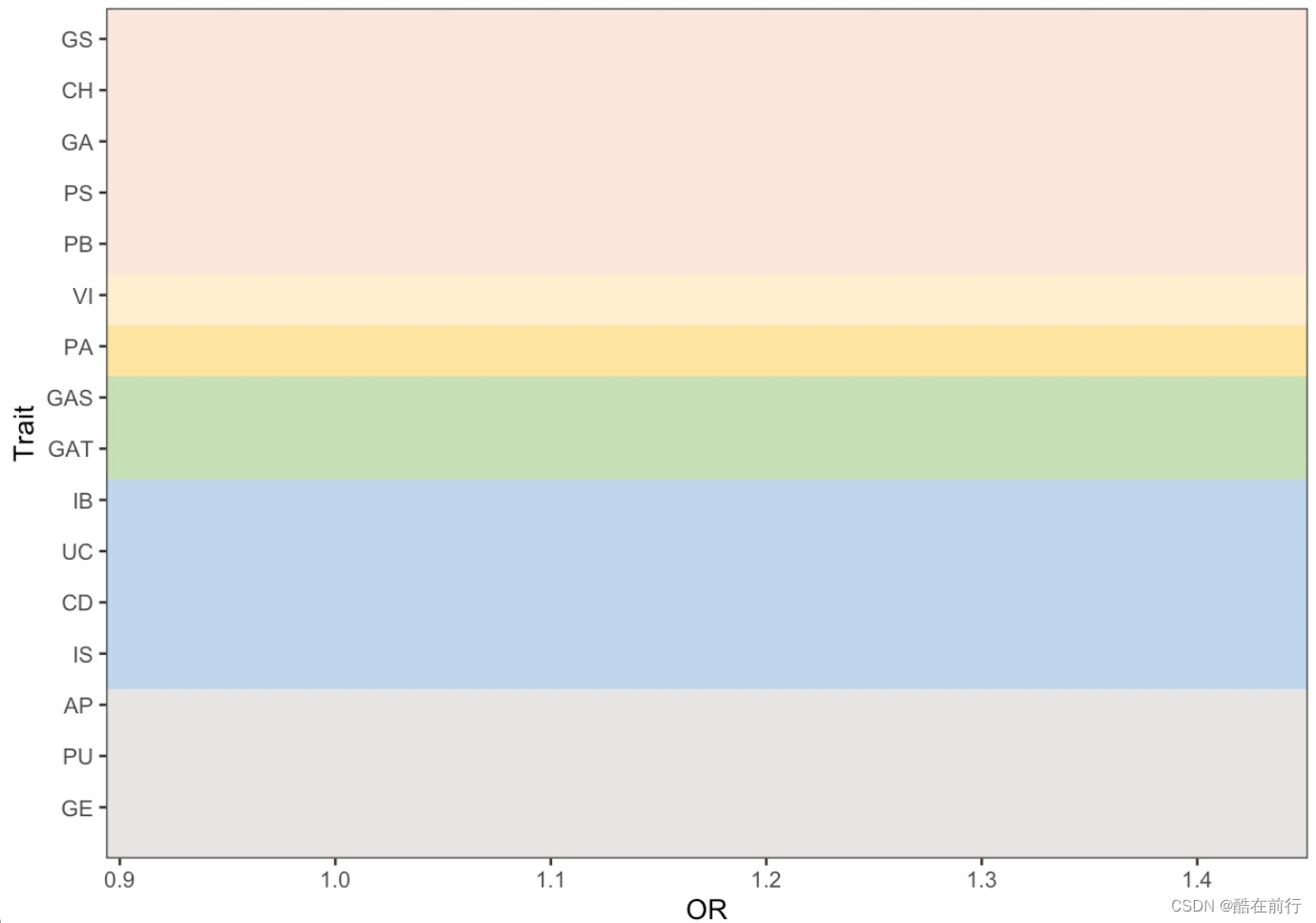

p2<- p1+ geom_rect(aes(xmin = -Inf, ymin = 3.4,xmax = Inf, ymax = 7.5),fill = "#BFD6ED", color = "#BFD6ED", size =1.5)+geom_rect(aes(xmin = -Inf, ymin = 7.5,xmax = Inf, ymax = 9.5),fill = "#C7DFB5", color = "#C7DFB5", size =1.5)+geom_rect(aes(xmin = -Inf, ymin = 9.5,xmax = Inf, ymax = 10.5),fill = "#FDE5A0", color = "#FDE5A0", size =1.5)+geom_rect(aes(xmin = -Inf, ymin = 10.5,xmax = Inf, ymax = 11.5),fill = "#FEEFCF", color = "#FEEFCF", size =1.5)+geom_rect(aes(xmin = -Inf, ymin = 11.5,xmax = Inf, ymax = 16.5),fill = "#FBE7DD", color = "#FBE7DD", size =1.5);p2

填充完色块了，就可以开始着点画箭头了。

添加箭头与注释

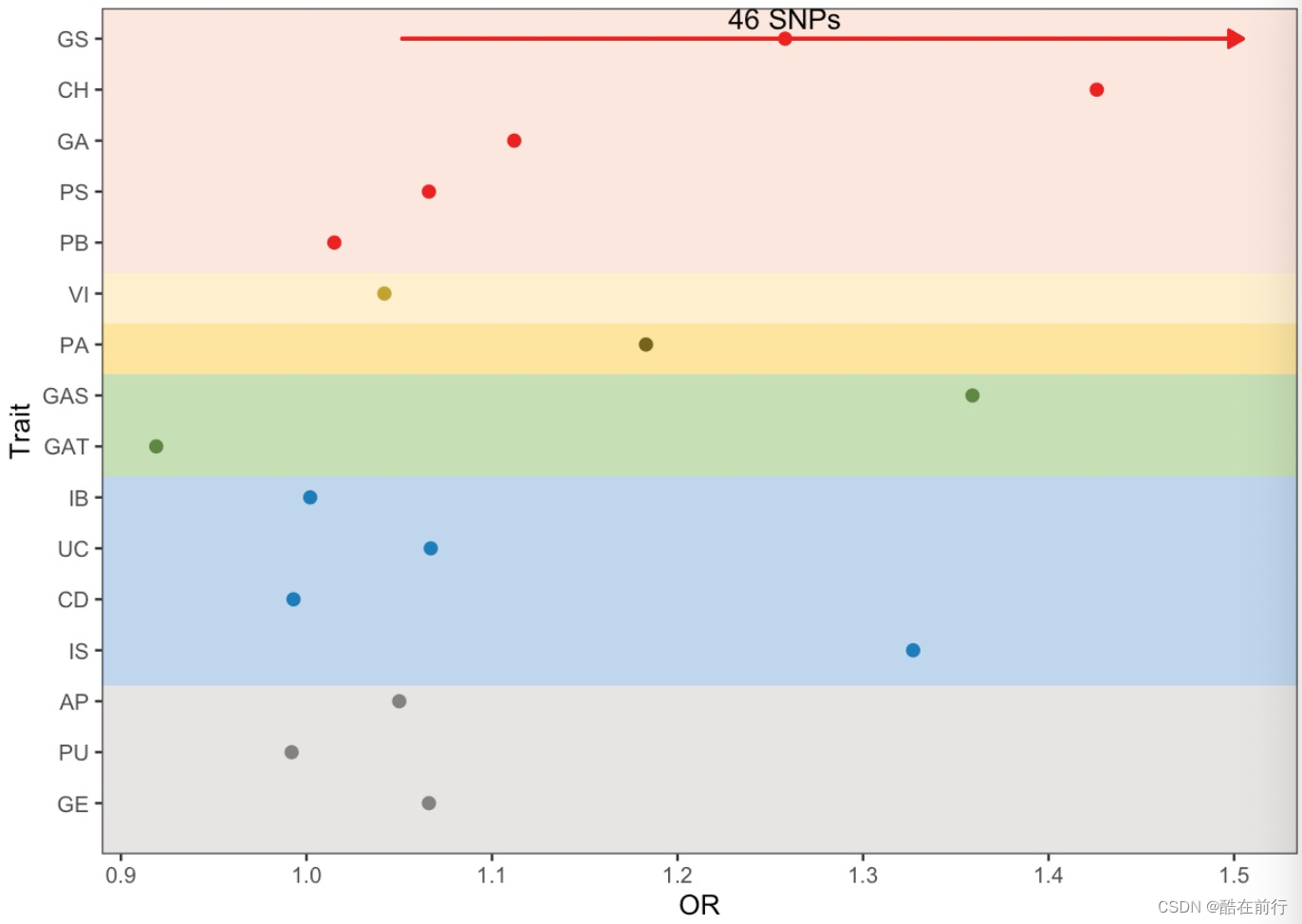

p3<- p2+geom_point(size=2)+#画点scale_fill_manual(values = c("#EB0D20", "#C0A42F", "#77621D","#5F8744", "#1D7CBA", "#828282"))+scale_color_manual(values = c("#EB0D20", "#C0A42F", "#77621D","#5F8744", "#1D7CBA", "#828282"))+geom_curve(aes(x = 1.051, y = 16, xend = 1.505, yend = 16),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#EB0D20", size = 0.5, angle = 0)+annotate("text",x= 1.258,y= 16.4 , label="46 SNPs",size=4);p3

箭头的起点与终点就是数据中的LCI与UCI，而注释的位置则要比点的位置略微高一些。由于无法批量将具体参数批量映射到箭头和注释上，因此我们需要手动输入相关参数。

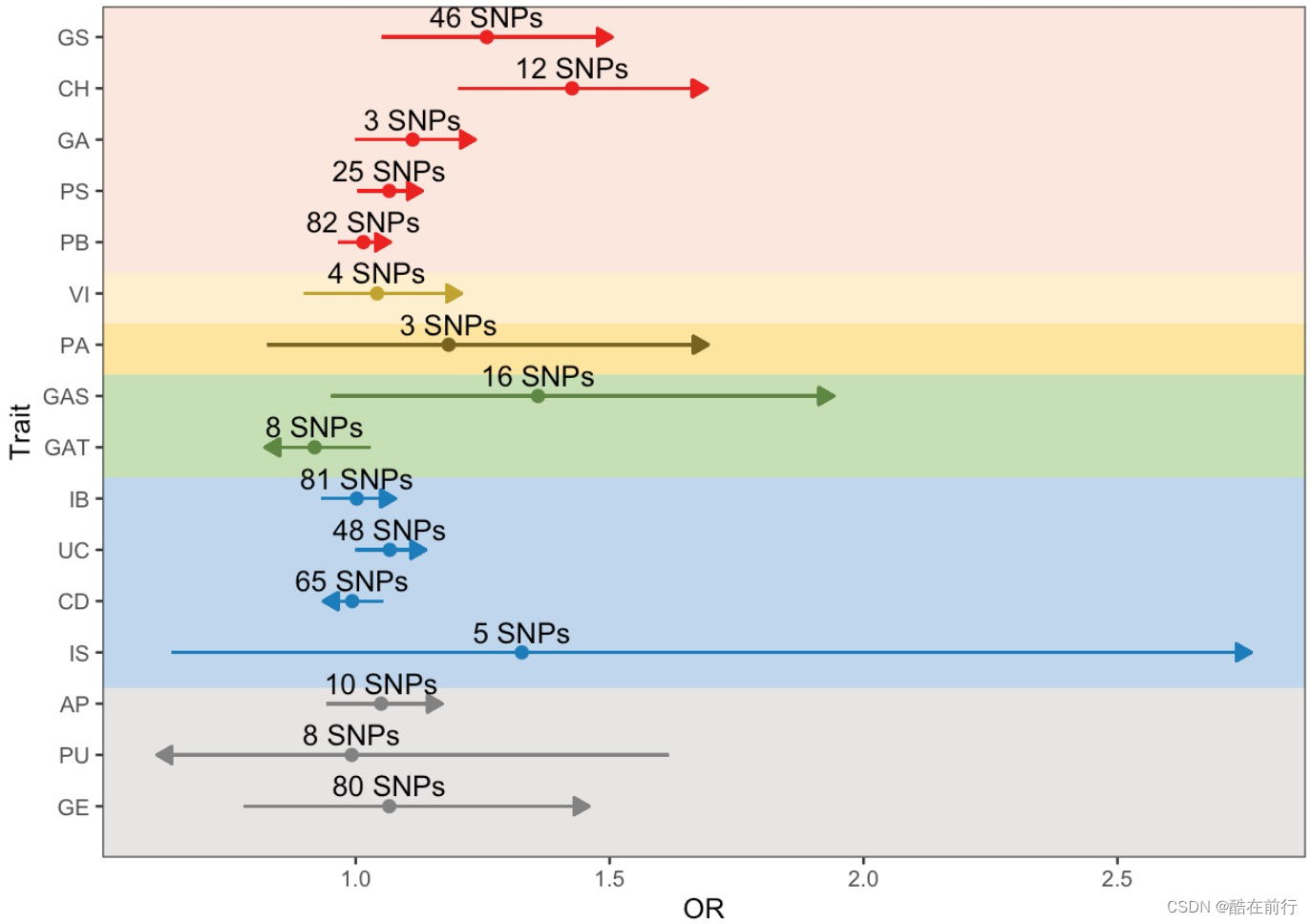

p4<- p3+geom_curve(aes(x = 1.202, y = 15, xend = 1.692, yend = 15),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#EB0D20", size = 0.5, angle = 0)+annotate("text",x= 1.426, y= 15.4 , label="12 SNPs",size=4)+ #Chgeom_curve(aes(x = 1, y = 14, xend = 1.235, yend = 14),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#EB0D20", size = 0.5, angle = 0)+annotate("text", x= 1.112, y= 14.4 , label="3 SNPs",size=4)+ #Gageom_curve(aes(x = 1.004, y =13, xend = 1.131, yend = 13),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#EB0D20", size = 0.5, angle = 0)+annotate("text", x= 1.066, y= 13.4 , label="25 SNPs",size=4)+ #PSgeom_curve(aes(x = 0.965, y =12, xend = 1.068, yend = 12),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#EB0D20", size = 0.5, angle = 0)+annotate("text", x= 1.015, y= 12.4 , label="82 SNPs",size=4)+  #PBgeom_curve(aes(x = 0.898, y = 11, xend = 1.208, yend = 11),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#C0A42F", size = 0.5, angle = 0)+annotate("text", x= 1.042, y= 11.4 , label="4 SNPs",size=4)+ #vigeom_curve(aes(x = 0.826, y =10, xend = 1.694 , yend = 10),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#77621D", size = 0.5, angle = 0)+annotate("text", x= 1.183, y= 10.4 , label="3 SNPs",size=4)+ #Pageom_curve(aes(x = 0.952, y = 9, xend = 1.941, yend = 9),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#5F8744", size = 0.5, angle = 0)+annotate("text", x= 1.359, y= 9.4 , label="16 SNPs",size=4)+ #Gasgeom_curve(aes(xend = 0.821, y = 8, x = 1.029, yend = 8),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#5F8744", size = 0.5, angle = 0)+annotate("text", x= 0.919, y= 8.4 , label="8 SNPs",size=4)+ #Gatgeom_curve(aes(x = 0.932, y = 7, xend = 1.078, yend = 7),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#1D7CBA", size = 0.5, angle = 0)+annotate("text", x= 1.002, y= 7.4 , label="81 SNPs",size=4)+ #IBgeom_curve(aes(x = 1.000, y = 6, xend = 1.138, yend = 6),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#1D7CBA", size = 0.5, angle = 0)+annotate("text", x= 1.067, y= 6.4 , label="48 SNPs",size=4)+ #UCgeom_curve(aes(xend = 0.936, y = 5, x = 1.053, yend = 5),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#1D7CBA", size = 0.5, angle = 0)+annotate("text", x= 0.993, y= 5.4 , label="65 SNPs",size=4)+ #CDgeom_curve(aes(x = 0.638, y = 4, xend = 2.763, yend = 4),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#1D7CBA", size = 0.5, angle = 0)+annotate("text", x= 1.327, y= 4.4 , label="5 SNPs",size=4)+ #ISgeom_curve(aes(x = 0.942, y = 3, xend = 1.170 , yend = 3),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#828282", size = 0.5, angle = 0)+annotate("text", x= 1.050, y= 3.4 , label="10 SNPs",size=4)+ #Apgeom_curve(aes(xend = 0.609, y = 2, x = 1.616, yend = 2),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#828282", size = 0.5, angle = 0)+annotate("text", x= 0.992, y= 2.4 , label="8 SNPs",size=4)+ #PUgeom_curve(aes(x = 0.779, y = 1, xend = 1.459, yend = 1),arrow = arrow(length = unit(0.02, "npc"), type="closed"),colour = "#828282", size = 0.5, angle = 0)+annotate("text", x= 1.066, y= 1.4 , label="80 SNPs",size=4);p4

参照线

p5<- p4+geom_vline(aes(xintercept=0.6), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=0.7), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=0.8), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=0.9), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=1), colour="black", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=1.1), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=1.2), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=1.3), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=1.4), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=1.5), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=1.6), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=1.7), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=1.8), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=1.9), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=2.0), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=2.1), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=2.2), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=2.3), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=2.4), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=2.5), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=2.6), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=2.7), colour="grey50", linetype="dashed", size=0.3)+geom_vline(aes(xintercept=2.8), colour="grey50", linetype="dashed", size=0.3);p5

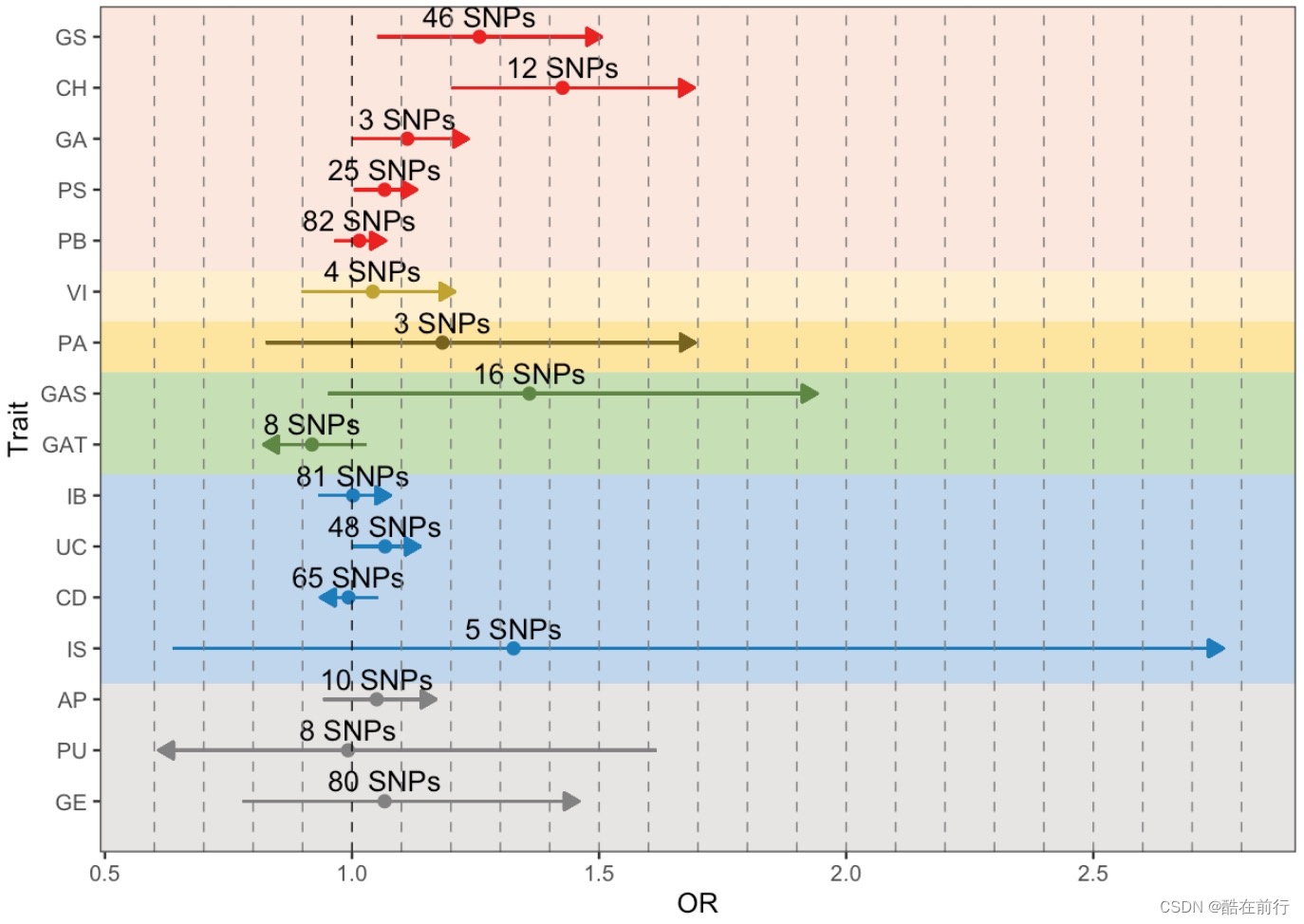

复现成功！

附上所有代码
