开发步骤
完成服务提供方的编写,完成服务消费方的编写

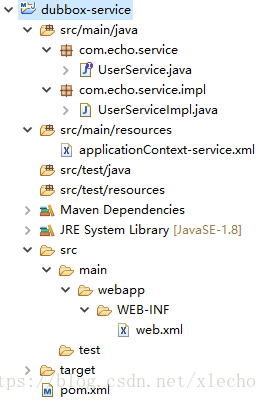

第一步:创建服务提供方的工程
第二步:配置pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><groupId>com.echo.dubboxservice</groupId><artifactId>dubbox-service</artifactId><version>0.0.1-SNAPSHOT</version><packaging>war</packaging><name>dubbox-service</name><properties> <spring.version>4.2.4.RELEASE</spring.version></properties><dependencies><!-- Spring --><dependency><groupId>org.springframework</groupId><artifactId>spring-context</artifactId><version>${spring.version}</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-beans</artifactId><version>${spring.version}</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-webmvc</artifactId><version>${spring.version}</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-jdbc</artifactId><version>${spring.version}</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-aspects</artifactId><version>${spring.version}</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-jms</artifactId><version>${spring.version}</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-context-support</artifactId><version>${spring.version}</version></dependency> <!-- dubbo相关 --><dependency><groupId>com.alibaba</groupId><artifactId>dubbo</artifactId><version>2.8.4</version> </dependency><dependency><groupId>org.apache.zookeeper</groupId><artifactId>zookeeper</artifactId><version>3.4.6</version></dependency><dependency><groupId>com.github.sgroschupf</groupId><artifactId>zkclient</artifactId><version>0.1</version></dependency><dependency><groupId>javassist</groupId><artifactId>javassist</artifactId><version>3.11.0.GA</version></dependency></dependencies><build> <plugins><plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-compiler-plugin</artifactId> <version>2.3.2</version> <configuration> <source>1.8</source> <target>1.8</target> </configuration> </plugin><plugin><groupId>org.apache.tomcat.maven</groupId><artifactId>tomcat7-maven-plugin</artifactId><version>2.2</version><configuration><port>10080</port></configuration></plugin></plugins> </build>
</project>
- 第三步:配置web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5"><display-name>springmvc</display-name><welcome-file-list><welcome-file>index.html</welcome-file><welcome-file>index.htm</welcome-file><welcome-file>index.jsp</welcome-file><welcome-file>default.html</welcome-file><welcome-file>default.htm</welcome-file><welcome-file>default.jsp</welcome-file></welcome-file-list><!-- 加载spring容器 --><context-param><param-name>contextConfigLocation</param-name><param-value>classpath:applicationContext*.xml</param-value></context-param><listener><listener-class>org.springframework.web.context.ContextLoaderListener</listener-class></listener></web-app>
- 第四步:配置applicationContext-service.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"xmlns:context="http://www.springframework.org/schema/context"xmlns:dubbo="http://code.alibabatech.com/schema/dubbo" xmlns:mvc="http://www.springframework.org/schema/mvc"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsdhttp://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsdhttp://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd"><dubbo:application name="dubbox-service"/><dubbo:registry address="zookeeper://192.168.25.129:2181"/><dubbo:annotation package="com.echo.service.impl" /></beans>
- 第五步:编写接口
package com.echo.service;
public interface UserService {public String getName();
}
- 第六步:编写实现
package com.echo.service.impl;import com.alibaba.dubbo.config.annotation.Service;
import com.echo.service.UserService;
@Service
public class UserServiceImpl implements UserService{@Overridepublic String getName() {return "echo";}}
注意:要在开发工具上配置一个离线约束http://code.alibabatech.com/schema/dubbo/dubbo.xsd

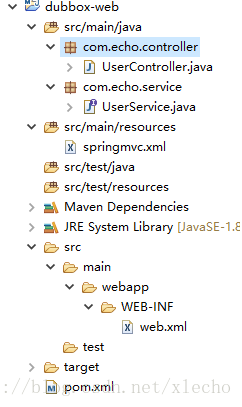

第七步:编写服务消费方,创建工程
第八步:配置web.xml,注意:两个工程的pom文件都一样,只是服务端口不能相同
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns="http://java.sun.com/xml/ns/javaee"xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"version="2.5"> <!-- 解决post乱码 --><filter><filter-name>CharacterEncodingFilter</filter-name><filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class><init-param><param-name>encoding</param-name><param-value>utf-8</param-value></init-param><init-param> <param-name>forceEncoding</param-name> <param-value>true</param-value> </init-param> </filter><filter-mapping><filter-name>CharacterEncodingFilter</filter-name><url-pattern>/*</url-pattern></filter-mapping> <servlet><servlet-name>springmvc</servlet-name><servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class><!-- 指定加载的配置文件 ,通过参数contextConfigLocation加载--><init-param><param-name>contextConfigLocation</param-name><param-value>classpath:springmvc.xml</param-value></init-param></servlet><servlet-mapping><servlet-name>springmvc</servlet-name><url-pattern>*.do</url-pattern></servlet-mapping>
</web-app>
- 第九步:编写控制类
package com.echo.controller;import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;import com.alibaba.dubbo.config.annotation.Reference;
import com.echo.service.UserService;@Controller
@RequestMapping("/user")
public class UserController {@Reference//代表远程引用private UserService userServie;@RequestMapping("/showName")@ResponseBodypublic String showName(){return userServie.getName();}
}
第十步:将服务提供方复制到服务消费方
第十一步:保证zookeeper是启动的
第十二步:在maven仓库配置dubbox的支持jar包,注意:要首先保证系统环境变量已经配置了maven
首先将dubbo-2.8.4放在D盘根目录下,然后执行这条命令:mvn install:install-file -Dfile=d:\dubbo-2.8.4.jar -DgroupId=com.alibaba -DartifactId=dubbo -Dversion=2.8.4 -Dpackaging=jar第三步:先启动服务提供方,再启动服务消费方,访问服务消费方,看是否是服务提供方返回的信息,如果是demo运行成功(访问路径:http://localhost:10081/user/showName.do)
源码地址:链接:https://pan.baidu.com/s/1t0kGDoFLCll5m8C51YSyvQ 密码:s7bn
