主要有以下功能：

1. 基本的Sprite3D使用，加载静态模型和动态模型，看 Sprite3DBasicTest

2.Sprite3D对象的旋转，缩放等Action操作

3.Sprite3D中使用Shader特效，实现outLine

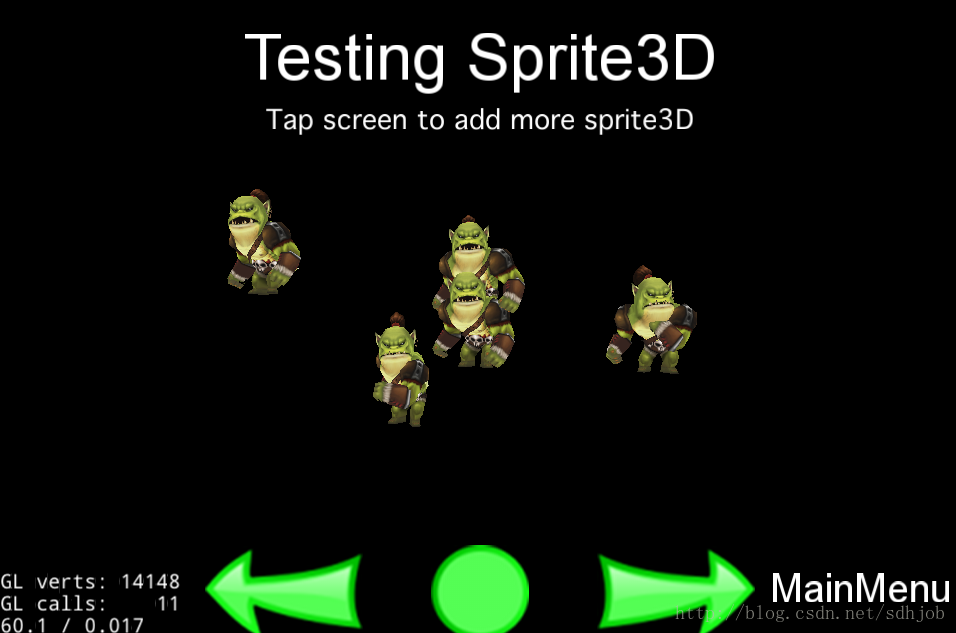

4.Animate3D来创建3D动画

5.动态增加3D骨骼，实现怪物添加手持武器功能

6，动态修改骨骼皮肤实现换装功能Sprite3DReskinTest

7.通过包围盒实现3D模型碰撞，Sprite3DWithOBBPerfromanceTest

8.实现水平镜像3D模型，Sprite3DMirrorTest

下面介绍一下Sprite3DTest里面的源码

#include "Sprite3DTest.h"

#include "3d/CCAnimation3D.h"

#include "3d/CCAnimate3D.h"

#include "3d/CCAttachNode.h"

#include "3d/CCRay.h"

#include "3d/CCSprite3D.h"

#include "renderer/CCVertexIndexBuffer.h"

#include "DrawNode3D.h"

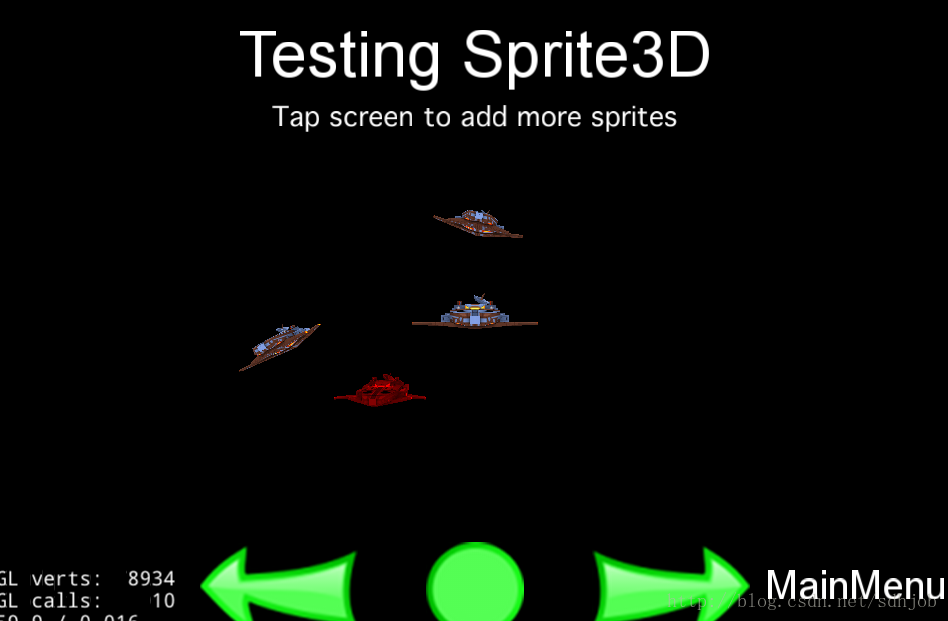

1.在Scene中添加3D模型

void Sprite3DBasicTest::addNewSpriteWithCoords(Vec2 p)

{

//这里的obj可以使用3dmax直接导出

// //option 1: load a obj that contain the texture in it 第一种方法是在模型文件中包含了纹理

// auto sprite = Sprite3D::create("sprite3dTest/scene01.obj");

//option 2: load obj and assign the texture 第二种方法是在模型文件中不包含纹理

auto sprite =Sprite3D::create("Sprite3DTest/boss1.obj");

sprite->setScale(3.f);

sprite->setTexture("Sprite3DTest/boss.png");

//在Sprite3D中包含了一些基本的Shader特效，下面是让3D模型实现outline

//sprite->setEffect(cocos2d::EFFECT_OUTLINE);

//add to scene

addChild( sprite );

sprite->setPosition( Vec2( p.x, p.y) );

ActionInterval* action;

float random = CCRANDOM_0_1();

if( random < 0.20 )

action = ScaleBy::create(3,2);

else if(random <0.40)

action = RotateBy::create(3,360);

else if( random <0.60)

action = Blink::create(1,3);

else if( random <0.8 )

action = TintBy::create(2,0, -255, -255);

else

action = FadeOut::create(2);

auto action_back = action->reverse();

auto seq = Sequence::create( action, action_back,nullptr );

sprite->runAction( RepeatForever::create(seq) );

//以上大家看到Sprite3D起始和Sprite类似都可以实现各种Action

}

void Sprite3DBasicTest::onTouchesEnded(conststd::vector<Touch*>& touches,Event* event)

{

for (auto touch: touches)

{

auto location = touch->getLocation();

//触摸屏幕添加3D模型

addNewSpriteWithCoords( location );

}

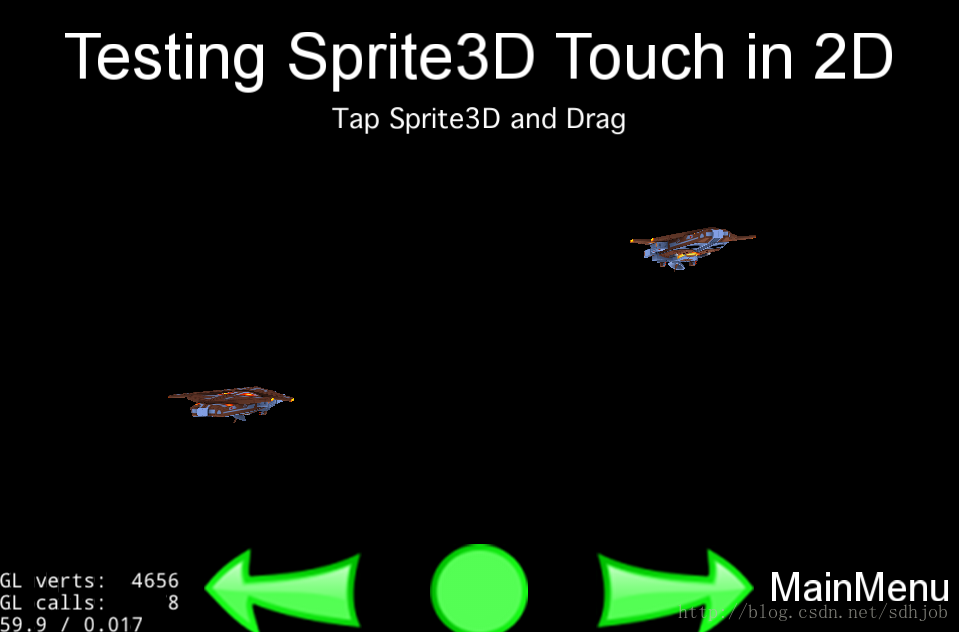

2.透过触摸屏幕拖动模型移动

Sprite3DHitTest::Sprite3DHitTest()

{

auto s =Director::getInstance()->getWinSize();

auto sprite1 =Sprite3D::create("Sprite3DTest/boss1.obj");

sprite1->setScale(4.f);

sprite1->setTexture("Sprite3DTest/boss.png");

sprite1->setPosition( Vec2(s.width/2, s.height/2) );

//add to scene

addChild( sprite1 );

sprite1->runAction(RepeatForever::create(RotateBy::create(3,360)));

auto sprite2 =Sprite3D::create("Sprite3DTest/boss1.obj");

sprite2->setScale(4.f);

sprite2->setTexture("Sprite3DTest/boss.png");

sprite2->setPosition( Vec2(s.width/2, s.height/2) );

sprite2->setAnchorPoint(Vec2(0.5,0.5));

//add to scene

addChild( sprite2 );

sprite2->runAction(RepeatForever::create(RotateBy::create(3, -360)));

// Make sprite1 touchable

auto listener1 =EventListenerTouchOneByOne::create();

listener1->setSwallowTouches(true);

listener1->onTouchBegan = [](Touch* touch,Event* event){

auto target = static_cast<Sprite3D*>(event->getCurrentTarget());

Rect rect = target->getBoundingBox();

if (rect.containsPoint(touch->getLocation()))

{

log("sprite3d began... x = %f, y = %f", touch->getLocation().x, touch->getLocation().y);

target->setOpacity(100);

return true;

}

return false;

};

listener1->onTouchMoved = [](Touch* touch,Event* event){

auto target = static_cast<Sprite3D*>(event->getCurrentTarget());

target->setPosition(target->getPosition() + touch->getDelta());

};

listener1->onTouchEnded = [=](Touch* touch,Event* event){

auto target = static_cast<Sprite3D*>(event->getCurrentTarget());

log("sprite3d onTouchesEnded.. ");

target->setOpacity(255);

};

_eventDispatcher->addEventListenerWithSceneGraphPriority(listener1, sprite1);

_eventDispatcher->addEventListenerWithSceneGraphPriority(listener1->clone(), sprite2);

}

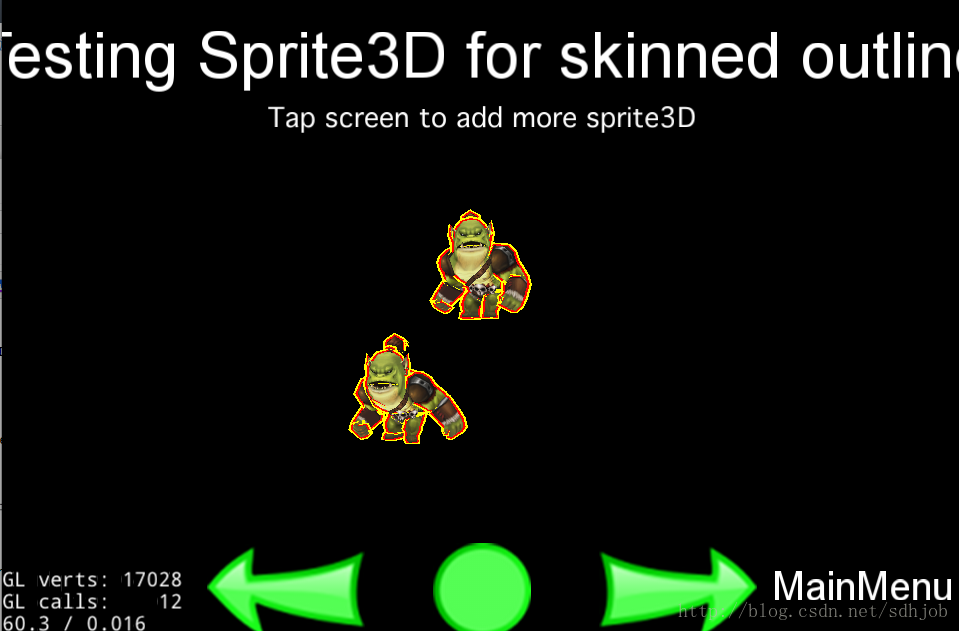

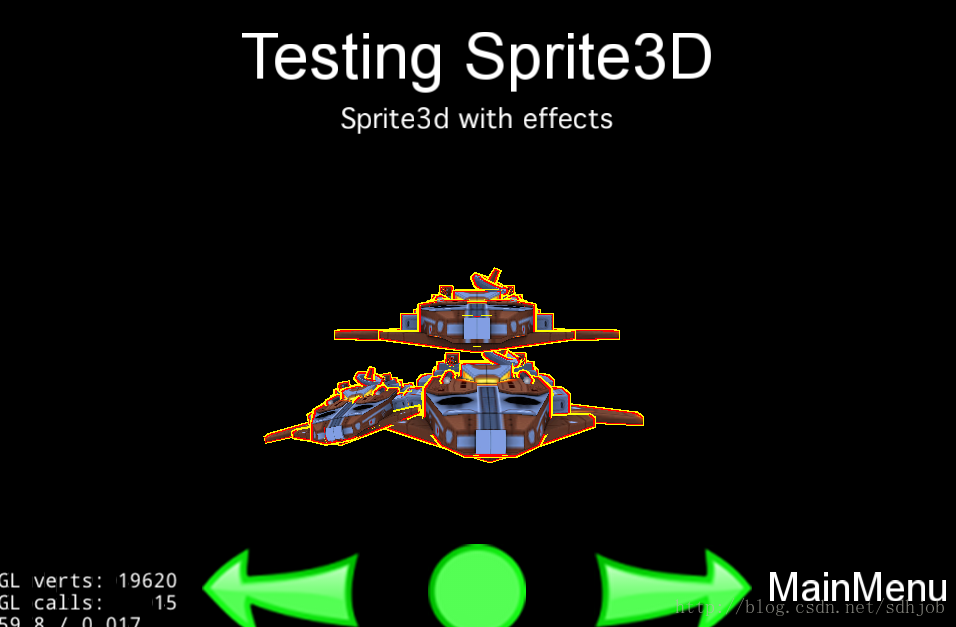

3.在一个Sprite3D上使用Shader

Effect3D继承REF封装了Shader的处理

Effect3DOutline继承了Effect3D，封装了Outline类型的Shader

EffectSprite3D继承了Sprite3D封装了对Effect3DOutline的调用

class Effect3D : publicRef

{

public:

virtual void draw(constMat4 &transform) = 0;

virtual void setTarget(EffectSprite3D *sprite) =0;

protected:

Effect3D() : _glProgramState(nullptr) {}

virtual ~Effect3D()

{

CC_SAFE_RELEASE(_glProgramState);

}

protected:

GLProgramState* _glProgramState;

};

class Effect3DOutline: publicEffect3D

{

public:

static Effect3DOutline* create();

void setOutlineColor(constVec3& color);

void setOutlineWidth(float width);

virtual void draw(constMat4 &transform) override;

virtual void setTarget(EffectSprite3D *sprite) override;

protected:

Effect3DOutline();

virtual ~Effect3DOutline();

bool init();

Vec3 _outlineColor;

float _outlineWidth;

//weak reference

EffectSprite3D* _sprite;

#if (CC_TARGET_PLATFORM == CC_PLATFORM_ANDROID)

EventListenerCustom* _backToForegroundListener;

#endif

protected:

static const std::string _vertShaderFile;

static const std::string _fragShaderFile;

static const std::string _keyInGLProgramCache;

static const std::string _vertSkinnedShaderFile;

static const std::string _fragSkinnedShaderFile;

static const std::string _keySkinnedInGLProgramCache;

static GLProgram* getOrCreateProgram(bool isSkinned =false);

};

class EffectSprite3D : publicSprite3D

{

public:

static EffectSprite3D* createFromObjFileAndTexture(conststd::string& objFilePath, const std::string& textureFilePath);

static EffectSprite3D* create(conststd::string& path);

void setEffect3D(Effect3D* effect);

void addEffect(Effect3DOutline* effect,ssize_t order);

virtual void draw(Renderer *renderer,const Mat4 &transform, uint32_t flags) override;

protected:

EffectSprite3D();

virtual ~EffectSprite3D();

std::vector<std::tuple<ssize_t,Effect3D*,CustomCommand>> _effects;

Effect3D* _defaultEffect;

CustomCommand _command;

};

class Sprite3DEffectTest : public Sprite3DTestDemo

{

public:

CREATE_FUNC(Sprite3DEffectTest);

Sprite3DEffectTest();

virtual std::string title()const override;

virtual std::string subtitle()const override;

void addNewSpriteWithCoords(Vec2 p);

void onTouchesEnded(conststd::vector<Touch*>& touches,Event* event);

};

const std::stringEffect3DOutline::_vertShaderFile = "Shaders3D/OutLine.vert";

const std::stringEffect3DOutline::_fragShaderFile = "Shaders3D/OutLine.frag";

const std::stringEffect3DOutline::_keyInGLProgramCache = "Effect3DLibrary_Outline";

const std::stringEffect3DOutline::_vertSkinnedShaderFile = "Shaders3D/SkinnedOutline.vert";

const std::stringEffect3DOutline::_fragSkinnedShaderFile = "Shaders3D/OutLine.frag";

const std::stringEffect3DOutline::_keySkinnedInGLProgramCache = "Effect3DLibrary_Outline";

GLProgram* Effect3DOutline::getOrCreateProgram(bool isSkinned/* = false */ )

{

if(isSkinned)

{

auto program = GLProgramCache::getInstance()->getGLProgram(_keySkinnedInGLProgramCache);

if(program == nullptr)

{

program = GLProgram::createWithFilenames(_vertSkinnedShaderFile,_fragSkinnedShaderFile);

GLProgramCache::getInstance()->addGLProgram(program,_keySkinnedInGLProgramCache);

}

return program;

}

else

{

auto program = GLProgramCache::getInstance()->getGLProgram(_keyInGLProgramCache);

if(program == nullptr)

{

program = GLProgram::createWithFilenames(_vertShaderFile,_fragShaderFile);

GLProgramCache::getInstance()->addGLProgram(program,_keyInGLProgramCache);

}

return program;

}

Effect3DOutline* Effect3DOutline::create()

{

Effect3DOutline* effect =new (std::nothrow)Effect3DOutline();

if(effect && effect->init())

{

effect->autorelease();

return effect;

}

else

{

CC_SAFE_DELETE(effect);

return nullptr;

}

bool Effect3DOutline::init()

{

return true;

}

Effect3DOutline::Effect3DOutline()

: _outlineWidth(1.0f)

, _outlineColor(1,1, 1)

, _sprite(nullptr)

{

#if (CC_TARGET_PLATFORM == CC_PLATFORM_ANDROID)

_backToForegroundListener = EventListenerCustom::create(EVENT_RENDERER_RECREATED,

[this](EventCustom*)

{

auto glProgram = _glProgramState->getGLProgram();

glProgram->reset();

glProgram->initWithFilenames(_vertShaderFile, _fragShaderFile);

glProgram->link();

glProgram->updateUniforms();

}

);

Director::getInstance()->getEventDispatcher()->addEventListenerWithFixedPriority(_backToForegroundListener, -1);

#endif

}

Effect3DOutline::~Effect3DOutline()

{

#if (CC_TARGET_PLATFORM == CC_PLATFORM_ANDROID)

Director::getInstance()->getEventDispatcher()->removeEventListener(_backToForegroundListener);

#endif

}

void Effect3DOutline::setOutlineColor(constVec3& color)

{

if(_outlineColor != color)

{

_outlineColor = color;

if(_glProgramState)

_glProgramState->setUniformVec3("OutLineColor",_outlineColor);

}

void Effect3DOutline::setOutlineWidth(float width)

{

if(_outlineWidth != width)

{

_outlineWidth = width;

if(_glProgramState)

_glProgramState->setUniformFloat("OutlineWidth",_outlineWidth);

}

void Effect3DOutline::setTarget(EffectSprite3D *sprite)

{

CCASSERT(nullptr != sprite &&nullptr != sprite->getMesh(),"Error: Setting a null pointer or a null mesh EffectSprite3D to Effect3D");

if(sprite != _sprite)

{

GLProgram* glprogram;

if(!sprite->getMesh()->getSkin())

glprogram = GLProgram::createWithFilenames(_vertShaderFile,_fragShaderFile);

else

glprogram = GLProgram::createWithFilenames(_vertSkinnedShaderFile,_fragSkinnedShaderFile);

_glProgramState = GLProgramState::create(glprogram);

_glProgramState->retain();

_glProgramState->setUniformVec3("OutLineColor",_outlineColor);

_glProgramState->setUniformFloat("OutlineWidth",_outlineWidth);

_sprite = sprite;

auto mesh = sprite->getMesh();

long offset = 0;

for (auto i =0; i < mesh->getMeshVertexAttribCount(); i++)

{

auto meshvertexattrib = mesh->getMeshVertexAttribute(i);

_glProgramState->setVertexAttribPointer(s_attributeNames[meshvertexattrib.vertexAttrib],

meshvertexattrib.size,

meshvertexattrib.type,

GL_FALSE,

mesh->getVertexSizeInBytes(),

(void*)offset);

offset += meshvertexattrib.attribSizeBytes;

}

Color4F color(_sprite->getDisplayedColor());

color.a = _sprite->getDisplayedOpacity() /255.0f;

_glProgramState->setUniformVec4("u_color",Vec4(color.r, color.g, color.b, color.a));

}

static void MatrixPalleteCallBack(GLProgram* glProgram, Uniform* uniform,int paletteSize, const float* palette)

{

glUniform4fv( uniform->location, (GLsizei)paletteSize, (constfloat*)palette );

}

void Effect3DOutline::draw(constMat4 &transform)

{

//draw

Color4F color(_sprite->getDisplayedColor());

color.a = _sprite->getDisplayedOpacity() /255.0f;

_glProgramState->setUniformVec4("u_color",Vec4(color.r, color.g, color.b, color.a));

if(_sprite && _sprite->getMesh())

{

glEnable(GL_CULL_FACE);

glCullFace(GL_FRONT);

glEnable(GL_DEPTH_TEST);

auto mesh = _sprite->getMesh();

glBindBuffer(GL_ARRAY_BUFFER, mesh->getVertexBuffer());

auto skin = _sprite->getMesh()->getSkin();

if(_sprite && skin)

{

auto function = std::bind(MatrixPalleteCallBack,std::placeholders::_1,std::placeholders::_2,

skin->getMatrixPaletteSize(), (float*)skin->getMatrixPalette());

_glProgramState->setUniformCallback("u_matrixPalette", function);

}

if(_sprite)

_glProgramState->apply(transform);

glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, mesh->getIndexBuffer());

glDrawElements(mesh->getPrimitiveType(), mesh->getIndexCount(), mesh->getIndexFormat(),0);

CC_INCREMENT_GL_DRAWN_BATCHES_AND_VERTICES(1, mesh->getIndexCount());

glBindBuffer(GL_ELEMENT_ARRAY_BUFFER,0);

glBindBuffer(GL_ARRAY_BUFFER,0);

glDisable(GL_DEPTH_TEST);

glCullFace(GL_BACK);

glDisable(GL_CULL_FACE);

}

void EffectSprite3D::draw(cocos2d::Renderer *renderer,const cocos2d::Mat4 &transform,uint32_t flags)

{

for(auto &effect : _effects)

{

if(std::get<0>(effect) >=0)

break;

CustomCommand &cc = std::get<2>(effect);

cc.func = CC_CALLBACK_0(Effect3D::draw,std::get<1>(effect),transform);

renderer->addCommand(&cc);

}

if(!_defaultEffect)

{

Sprite3D::draw(renderer, transform, flags);

}

else

{

_command.init(_globalZOrder);

_command.func =CC_CALLBACK_0(Effect3D::draw,_defaultEffect, transform);

renderer->addCommand(&_command);

}

for(auto &effect : _effects)

{

if(std::get<0>(effect) <=0)

continue;

CustomCommand &cc = std::get<2>(effect);

cc.func = CC_CALLBACK_0(Effect3D::draw,std::get<1>(effect),transform);

renderer->addCommand(&cc);

}

//Sprite3DEffectTest中实现了对Sprite3DEffect的加载

Sprite3DEffectTest::Sprite3DEffectTest()

{

auto s =Director::getInstance()->getWinSize();

addNewSpriteWithCoords(Vec2(s.width/2, s.height/2) );

auto listener =EventListenerTouchAllAtOnce::create();

listener->onTouchesEnded = CC_CALLBACK_2(Sprite3DEffectTest::onTouchesEnded,this);

_eventDispatcher->addEventListenerWithSceneGraphPriority(listener,this);

}

void Sprite3DEffectTest::addNewSpriteWithCoords(Vec2 p)

{

//option 2: load obj and assign the texture

auto sprite =EffectSprite3D::createFromObjFileAndTexture("Sprite3DTest/boss1.obj","Sprite3DTest/boss.png");

Effect3DOutline* effect =Effect3DOutline::create();

sprite->addEffect(effect, -1);

effect->setOutlineColor(Vec3(1,0,0));

effect->setOutlineWidth(0.01f);

Effect3DOutline* effect2 =Effect3DOutline::create();

sprite->addEffect(effect2, -2);

effect2->setOutlineWidth(0.02f);

effect2->setOutlineColor(Vec3(1,1,0));

//sprite->setEffect3D(effect);

sprite->setScale(6.f);

//add to scene

addChild( sprite );

sprite->setPosition( Vec2( p.x, p.y) );

ActionInterval* action;

float random = CCRANDOM_0_1();

if( random < 0.20 )

action = ScaleBy::create(3,2);

else if(random <0.40)

action = RotateBy::create(3,360);

else if( random <0.60)

action = Blink::create(1,3);

else if( random <0.8 )

action = TintBy::create(2,0, -255, -255);

else

action = FadeOut::create(2);

auto action_back = action->reverse();

auto seq = Sequence::create( action, action_back,nullptr );

sprite->runAction( RepeatForever::create(seq) );

}

void Sprite3DEffectTest::onTouchesEnded(conststd::vector<Touch*>& touches,Event* event)

{

for (auto touch: touches)

{

auto location = touch->getLocation();

addNewSpriteWithCoords( location );

}

4.加载包含了3D纹理和动画的C3B文件，具体转化方法为在tools下使用fbx-conv.exe将3dmax导出的文件转化为c3b

用Sprite3D来加载c3b,用Animation3D，和Animate3D来创建动画

auto animation = Animation3D::create(fileName);

if (animation)

{

auto animate = Animate3D::create(animation);

sprite->runAction(RepeatForever::create(animate));

}

void Sprite3DWithSkinTest::addNewSpriteWithCoords(Vec2 p)

{

std::string fileName ="Sprite3DTest/orc.c3b";

auto sprite = EffectSprite3D::create(fileName);

sprite->setScale(3);

sprite->setRotation3D(Vec3(0,180,0));

addChild(sprite);

sprite->setPosition( Vec2( p.x, p.y) );

auto animation = Animation3D::create(fileName);

if (animation)

{

auto animate = Animate3D::create(animation);

bool inverse = (std::rand() %3 == 0);

int rand2 = std::rand();

float speed = 1.0f;

if(rand2 % 3 ==1)

{

speed = animate->getSpeed() + CCRANDOM_0_1();

}

else if(rand2 %3 == 2)

{

speed = animate->getSpeed() - 0.5 * CCRANDOM_0_1();

}

animate->setSpeed(inverse ? -speed : speed);

sprite->runAction(RepeatForever::create(animate));

}

5.在以上模型和动画中添加特效（方法和在静态模型上一样）

void Sprite3DWithSkinOutlineTest::addNewSpriteWithCoords(Vec2 p)

{

std::string fileName ="Sprite3DTest/orc.c3b";

auto sprite = EffectSprite3D::create(fileName);

Effect3DOutline* effect =Effect3DOutline::create();

effect->setOutlineColor(Vec3(1,0,0));

effect->setOutlineWidth(0.01f);

sprite->addEffect(effect, -1);

Effect3DOutline* effect2 =Effect3DOutline::create();

effect2->setOutlineWidth(0.02f);

effect2->setOutlineColor(Vec3(1,1,0));

sprite->addEffect(effect2, -2);

sprite->setScale(3);

sprite->setRotation3D(Vec3(0,180,0));

addChild(sprite);

sprite->setPosition( Vec2( p.x, p.y) );

auto animation =

查看全文

http://www.jmfq.cn/news/5238001.html

做合法的海外购网站需要什么手续/广州网站排名优化公司

设置本机外网ip做网站/百度关键词指数查询

湖南的商城网站建设/专门开发小程序的公司

如何做网站新手引导/重庆网站搜索引擎seo

政府门户网站建设多元化/陕西网站建设网络公司

wordpress网站报价/关键词排名优化网站

做建材一般去什么网站宣传/自媒体平台注册官网下载

邯郸市建设局网站2017/整站优化是什么意思

青岛高端网站建设公司/百度搜索引擎官网入口

大连市自然资源局/优化网站快速排名软件

湖南网站建设开发/seo关键词排名优化教程

网站做3儿童车开场动画/软文拟发布的平台与板块

浙江网站建设的要求/神马网站快速排名案例

体育直播网站制作开发/c++线上培训机构哪个好

成都疫情最新新闻/西安seo外包平台

直播间搭建/新乡seo顾问

湛江赤坎海田网站建设招聘/合肥新闻今天最新消息

WordPress文章内容密码可见/seo服务外包报价

相关文章：
